How To Set Up Mig Welder For Sheet Metal
If you want to work with sheet metal, having the right tools and equipment is essential. One of the most commonly used tools for welding sheet metal is a MIG welder. However, setting up a MIG welder for sheet metal can be a bit tricky if you don’t know what you’re doing. But don’t worry, we’ve got you covered.

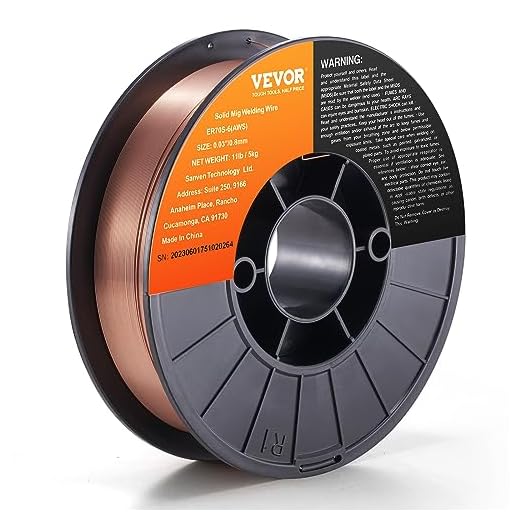

The first step in setting up your MIG welder for sheet metal is to make sure you have the right type of wire. You’ll want to use a wire that is specifically designed for welding thin sheet metal. This type of wire is usually called “ER70S-6” wire and is known for its high tensile strength and ability to produce clean welds.
Once you have the right wire, the next step is to adjust your MIG welder settings. For sheet metal, you’ll want to use a lower voltage setting and a lower wire speed setting. This will help prevent burn-through and ensure that your welds are strong and clean. It’s also a good idea to use a smaller diameter wire for sheet metal, as this will provide better control and allow for more precise welds.
In addition to adjusting your welder settings, it’s important to properly prepare your sheet metal before welding. Make sure the metal is clean and free of any rust, paint, or debris. You’ll also want to properly clamp down the metal to prevent it from warping or moving during the welding process.
By following these steps and taking the time to properly set up your MIG welder for sheet metal, you’ll be well on your way to successfully welding thin and delicate materials. Remember to always prioritize safety and wear the necessary protective gear when working with any type of welding equipment. Happy welding!
Why Use Mig Welder for Sheet Metal?
Mig welding, also known as metal inert gas welding, is a popular method for joining sheet metal. There are several reasons why mig welding is commonly used for this application:
1. Speed: Mig welding is a fast and efficient process. It allows for high weld deposition rates, which means that you can complete welding jobs quickly.
2. Versatility: Mig welding can be used on a wide range of sheet metal thicknesses, from thin gauge to thicker materials. This versatility makes it a suitable choice for various sheet metal applications.
3. Control: Mig welders offer good control over heat input, which is important when welding sheet metal. Too much heat can cause distortion or burn-through, while too little heat may result in insufficient fusion. Mig welding allows you to adjust the heat settings to achieve optimal results.
4. Clean welds: Mig welding produces clean and precise welds on sheet metal. The process uses a shielding gas that protects the weld pool from atmospheric contamination, resulting in cleaner welds with minimal spatter.
5. Ease of use: Mig welding is relatively easy to learn and use, making it suitable for beginners and experienced welders alike. With proper training and practice, you can quickly master mig welding techniques for sheet metal.
6. Cost-effective: Mig welding equipment is generally affordable and readily available. It is a cost-effective option for welding sheet metal, especially for those who need to work with thin gauge materials on a regular basis.
In conclusion, mig welding offers several advantages for welding sheet metal. Its speed, versatility, control, clean welds, ease of use, and cost-effectiveness make it a popular choice among welders working with sheet metal.
Benefits of Using Mig Welder for Sheet Metal
When it comes to sheet metal welding, using a MIG (Metal Inert Gas) welder offers several advantages. Whether you are a professional or a hobbyist, a MIG welder can help you achieve high-quality, precise welds with ease. Here are some of the key benefits of using a MIG welder for sheet metal:
- Controlled heat: MIG welding allows you to have better control over the heat input, which is crucial for welding thin sheet metal. The ability to adjust the voltage and wire feed speed helps prevent overheating and warping of the metal.
- Fast and efficient: MIG welding is known for its speed and efficiency. The continuous wire feed and automatic arc initiation make it a quick and easy process, allowing you to complete projects faster.
- Clean welds: With MIG welding, you can achieve clean and aesthetically pleasing welds. The MIG process produces a smooth weld bead with minimal spatter, resulting in a professional-looking finish.
- Versatility: MIG welders are highly versatile and can be used for a wide range of sheet metal applications. Whether you are welding automotive panels, HVAC ducts, or other thin-gauge materials, a MIG welder can handle the job.
- Less distortion: Due to the controlled heat and precise welding technique, MIG welding helps minimize distortion of the sheet metal. This is especially important when working on projects that require tight tolerances and precision.
- User-friendly: MIG welding is relatively easy to learn and perfect for beginners. The process does not require extensive prep work or intricate techniques, making it accessible to anyone interested in sheet metal welding.
Overall, using a MIG welder for sheet metal offers numerous benefits, including controlled heat, speed, clean welds, versatility, less distortion, and user-friendliness. With the right setup and proper technique, you can achieve high-quality welds and create impressive projects with ease.
Step-by-Step Guide to Set Up Mig Welder for Sheet Metal
Sheet metal welding requires careful setup and precision to achieve strong and clean welds. Here is a step-by-step guide to help you set up your MIG welder for sheet metal welding:
1. Choose the Right Wire and Gas
For sheet metal welding, it is recommended to use a thin wire diameter, such as 0.023 or 0.030 inches. This helps reduce heat input and prevents warping or burning through the metal. As for the shielding gas, a mix of 75% argon and 25% carbon dioxide (CO2) is commonly used for sheet metal welding.
2. Prepare the Welding Machine
Make sure your MIG welder is properly set up for sheet metal welding. Set the wire feed speed and voltage according to the thickness of the sheet metal you are welding. Consult the welder’s manual for the recommended settings. Ensure that all connections are secure and the ground clamp is attached to a clean metal surface.
3. Clean the Sheet Metal
Before welding, it is essential to clean the sheet metal to remove any dirt, oil, or rust. Use a wire brush or a grinder with a wire wheel to clean the welding area thoroughly. This ensures better contact and a cleaner weld.
4. Set Up Proper Joint Fit-Up
Ensure that the joint fit-up between the sheet metal pieces is accurate and tight. Use clamps or magnets to hold the pieces in place during welding. Proper joint fit-up minimizes the gap and ensures better fusion between the metals.
5. Adjust the Welding Technique
Sheet metal welding requires precise control and a steady hand. Use a push technique, where the tip of the MIG gun pushes the weld puddle away from the torch. Keep a short distance between the gun and the sheet metal, usually around 1/4 inch.
Move the gun in a consistent, steady motion along the joint, maintaining the same distance and angle. Watch for signs of overheating, such as excessive spatter or melting of the metal.
6. Test and Adjust
After setting up your MIG welder and completing a weld, inspect the result for quality. The weld should be clean, with good penetration and minimal distortion. If necessary, adjust the wire speed or voltage settings to achieve the desired results.
Remember, practice makes perfect. Take the time to master the setup and welding technique on scrap sheet metal pieces before working on your actual project.
By following this step-by-step guide, you can properly set up your MIG welder for sheet metal welding and achieve high-quality welds for your projects.
Tips for Welding Sheet Metal With Mig Welder
Welding sheet metal can be a challenging task, but with the right techniques and equipment, you can achieve professional results. Here are some tips to help you weld sheet metal effectively using a MIG welder:
1. Use a lower wire feed speed
When welding sheet metal, it’s important to use a lower wire feed speed to prevent overheating and distortion. Set the wire feed speed to a lower setting and make sure the wire is not feeding too quickly.
2. Use a smaller wire diameter
Using a smaller wire diameter, such as 0.023 or 0.030 inches, can help to reduce heat input and provide better control when welding sheet metal. The smaller wire diameter allows for more precise welding and reduces the risk of burning through the metal.
3. Use a short arc length
When welding sheet metal, it’s recommended to use a shorter arc length. This helps to reduce heat input and prevents excessive penetration. Keep the arc length between 1/8 to 3/16 inches to ensure a controlled and precise weld.
4. Use a lower voltage setting
Adjusting the voltage setting on your MIG welder is crucial when welding sheet metal. Lower voltage settings produce less heat, which helps to prevent warping and distortion. Experiment with different voltage settings to find the best balance for your specific sheet metal thickness.
5. Use a shielding gas with a higher argon content
Using a shielding gas with a higher argon content, such as 90% argon and 10% carbon dioxide, can improve weld quality when working with sheet metal. This gas mixture provides better arc stability and reduces the risk of porosity in the weld.
6. Use clamps to minimize distortion
Clamping the sheet metal in place before welding can help to reduce distortion. Use welding clamps or magnets to hold the metal in position and prevent it from moving while you weld. This will result in a cleaner and more precise weld.
7. Practice proper welding technique
When welding sheet metal, it’s essential to maintain a steady hand and a consistent travel speed. Move the torch in a controlled motion and keep a consistent distance between the nozzle and the metal. Practice your technique on scrap pieces of sheet metal before working on the actual project.
By following these tips, you can improve your welding skills and achieve professional-looking welds on sheet metal using a MIG welder. Remember to prioritize safety by wearing protective gear and working in a well-ventilated area. Happy welding!
Questions and answers
What is sheet metal welding?
Sheet metal welding is a process of joining two or more pieces of sheet metal using heat and pressure generated by a welding machine.
Why is it important to set up the MIG welder properly when working with sheet metal?
Setting up the MIG welder properly is important when working with sheet metal because it ensures that the welds are strong, clean, and have minimal heat distortion. It also helps to prevent burn-through and warpage of the sheet metal.
What factors should be considered when setting up a MIG welder for sheet metal?
When setting up a MIG welder for sheet metal, several factors should be considered. These include the wire type and diameter, shielding gas type and flow rate, power settings, and the welding technique. It is important to choose the correct settings for these factors to achieve high-quality welds on sheet metal.
How can I determine the proper wire size and type for MIG welding sheet metal?
The proper wire size and type for MIG welding sheet metal can be determined by considering the thickness of the sheet metal. Generally, a thinner wire diameter, such as 0.023 or 0.030 inch, is suitable for welding thin sheet metal. For thicker sheet metal, a larger wire diameter, such as 0.035 inch, may be used. As for the wire type, ER70S-6 is a common choice for general-purpose sheet metal welding.
