How To Set Up Mig Welder For Flux Core Wire
When it comes to welding, one of the most versatile tools you can have is a MIG welder. This powerful device uses a wire electrode to create an electric arc that melts the metal and fuses it together, allowing you to join pieces of metal with ease. One type of wire that you can use with a MIG welder is flux core wire, which is perfect for outdoor welding or in situations where a shielding gas may not be available.
Setting up your MIG welder for flux core wire is a fairly straightforward process, but it does require some careful attention to detail. First, you’ll need to ensure that your welding machine is compatible with flux core wire. This information can usually be found in the user manual or on the machine itself. Once you’ve confirmed compatibility, you’ll need to gather the necessary materials, including flux core wire, welding gloves, a welding helmet, and a welding apron.
Next, you’ll need to prepare your welder for flux core wire. This involves adjusting the welding machine’s settings to accommodate the specific characteristics of flux core wire. For example, you’ll need to set the wire feed speed and voltage according to the thickness of the metal you’ll be welding. It’s important to consult the manufacturer’s recommendations or seek advice from a welding professional to ensure that your settings are correct.
Finally, you’ll need to load the flux core wire into your welding machine. This process typically involves feeding the wire through the wire feeding mechanism and then attaching it to the welding gun. It’s crucial to make sure that the wire is properly aligned and securely fastened to prevent any issues during the welding process.
By following these steps and taking the time to properly set up your MIG welder for flux core wire, you’ll be well on your way to successfully completing your welding projects with ease and efficiency. Remember to always prioritize safety and wear the appropriate protective gear when using any welding equipment. Happy welding!
Choosing the Right Mig Welder for Flux Core Wire
When it comes to welding with flux core wire, selecting the right MIG welder is crucial for achieving high-quality welds. Here are some key factors to consider when choosing a MIG welder for flux core wire:
| Factor | Description |
|---|---|
| Power Output | Ensure the MIG welder has sufficient power output to handle the specific thickness of the metal you will be welding. The power output should be adjustable to match various welding requirements. |
| Wire Size Compatibility | Check that the MIG welder is compatible with the wire sizes you plan to use. Flux core wire typically comes in different diameters, so make sure the welder’s wire feeding mechanism can accommodate the desired wire size. |
| Wire Speed and Voltage Control | A MIG welder with adjustable wire speed and voltage control allows you to fine-tune the welding process to achieve optimal results. This flexibility is crucial, especially when working with different types of metals and thicknesses. |
| Portability | If you plan to move your welder frequently or work in different locations, consider the portability of the MIG welder. Look for features such as lightweight design, compact size, and convenient carrying handles. |
| Duty Cycle | The duty cycle indicates the amount of time a welder can continuously operate before needing to cool down. Ensure the MIG welder has a duty cycle suitable for your intended welding projects to avoid overheating issues. |
| Quality and Durability | Investing in a MIG welder made from high-quality materials and with a solid construction ensures its durability and longevity. Look for models with positive customer reviews and reliable manufacturers. |
By considering these factors and selecting a MIG welder that meets your specific needs, you can ensure smooth and successful welding with flux core wire.
Understanding the Basics of Flux Core Wire Welding
Flux core wire welding is a popular and versatile welding process that uses a hollow wire filled with flux to create a protective shield and provide a source of filler material. This type of welding is commonly used in construction, automotive repairs, and other metal fabrication applications.
How Flux Core Wire Welding Works
Flux core wire welding works by feeding a continuous wire electrode through a welding gun, which melts as it enters the welding arc and forms a molten pool. The flux inside the wire melts and creates a shielding gas to protect the weld from atmospheric contamination, such as oxygen and nitrogen. The flux also helps release gases that prevent porosity in the weld.
Unlike traditional solid wire MIG welding, flux core wire welding does not require an external shielding gas, making it a more convenient and portable option. The flux inside the wire acts as its own shield, eliminating the need for a separate gas cylinder.
Advantages of Flux Core Wire Welding
There are several advantages to using flux core wire welding:
- Portability: Flux core wire welding does not rely on an external shielding gas, allowing for greater mobility and flexibility in various welding environments.
- Cost-effective: Since flux core wire welding does not require additional shielding gas, it is generally more cost-effective than traditional welding processes.
- Deep penetration: Flux core wire welding produces deep and strong welds, making it suitable for thicker materials and structural applications.
- Less sensitivity to wind and drafts: The flux acts as a shield, making flux core wire welding less affected by wind and drafts compared to MIG welding.
Important considerations when using flux core wire welding:
While flux core wire welding offers many advantages, it is essential to consider the following factors to achieve optimal results:
- Wire diameter: The diameter of the flux core wire affects the welding process. Thicker wires are better suited for high-amperage applications and thicker materials, while thinner wires are more suitable for low-amperage applications and thinner materials.
- Wire feed speed: The wire feed speed determines the amount of filler material provided and affects the size and quality of the weld bead. Finding the correct wire feed speed is crucial for achieving proper fusion and penetration.
- Power settings: Adjusting the power settings on the welding machine is crucial for controlling heat input and achieving proper fusion. The settings may vary depending on the material thickness and joint configuration.
Understanding the basics of flux core wire welding is essential for achieving successful and quality welds. By considering the factors mentioned above and fine-tuning the settings, you can master the art of flux core wire welding and tackle various metal fabrication projects with confidence.
Adjusting the Wire Feed Speed and Voltage Settings
Once you have assembled your flux core wire and connected it to the welding machine, you will need to adjust the wire feed speed and voltage settings to ensure a clean and efficient weld. These settings will vary depending on the thickness of the material you are welding.
The wire feed speed controls how fast the wire is fed into the welding gun. This speed should be set according to the manufacturer’s recommendations for the specific wire you are using. If the wire is being fed too fast, you may experience excessive spatter and an inconsistent weld. On the other hand, if the wire is being fed too slow, the weld may be too thin and weak. Adjust the wire feed speed until you achieve a smooth and steady weld pool.
The voltage settings control the power supplied to the welding arc. Higher voltage settings generate a hotter arc, which is suitable for thicker materials. Lower voltage settings produce a cooler arc, which is ideal for thinner materials. Refer to the welding machine’s user manual for recommended voltage settings based on the thickness of the metal you are welding.
When adjusting the voltage settings, start with the machine’s recommended setting for the material thickness, and make small adjustments as necessary. Too high of a voltage can cause excessive spatter and burn-through, while too low of a voltage may result in an incomplete fusion of the metal. Test your welds and make careful adjustments to find the optimal voltage for your specific welding project.
Remember to always work in a well-ventilated area and wear appropriate safety gear when using a flux core welder. Additionally, practice on scrap pieces of metal before working on your actual project to get a feel for the machine’s settings and your technique. With a little practice and experimentation, you will be able to fine-tune the wire feed speed and voltage settings to achieve high-quality welds.

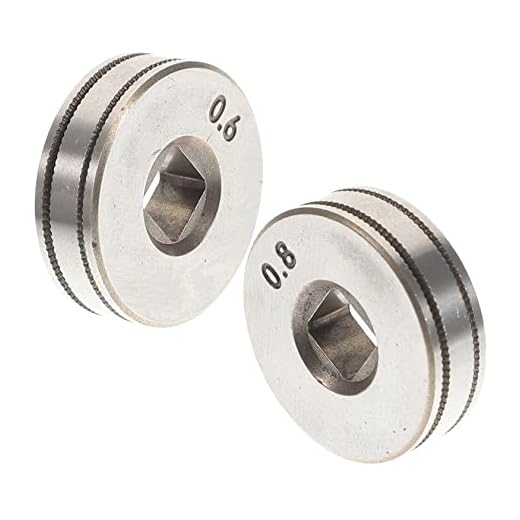

Selecting the Proper Size Drive Rolls and Contact Tips
One important aspect of setting up a MIG welder for flux core wire is selecting the proper size drive rolls and contact tips. These components play a crucial role in ensuring smooth wire feeding and efficient welding.
The size of the drive rolls should match the diameter of the flux core wire being used. Using the wrong size drive rolls can lead to problems such as wire slipping or inconsistent feeding. Check the manufacturer’s recommendations or consult the user manual for the correct drive roll size.
Similarly, the contact tip should be compatible with the diameter of the flux core wire. It’s essential to choose a contact tip with the right size opening to ensure a smooth and stable wire feed. Using a contact tip with the wrong size may result in wire clogging or poor arc stability.
Avoid using worn or damaged drive rolls and contact tips, as they can negatively affect wire feeding and welding performance. Regularly inspect and replace these components as needed to maintain optimum weld quality.
When installing the drive rolls and contact tip, ensure they are securely tightened but be careful not to overtighten. Overtightening can cause damage to the components and may lead to premature wear or failure.
Properly selecting and maintaining the size of the drive rolls and contact tips is crucial for achieving consistent and high-quality welds when using flux core wire. Taking the time to ensure the correct sizing and proper installation will help improve the overall performance and longevity of your MIG welding setup.
Setting Up the Gasless Flux Core Welding Torch
Setting up the gasless flux core welding torch is a crucial step in being able to achieve successful welds using this technique. Follow these steps to ensure proper setup:
1. Prepare the Welding Torch:
Before setting up the welding torch, ensure that it is clean and in good condition. Remove any dirt or debris that may have accumulated on the torch.
2. Install the Flux Core Wire:
Insert the flux core wire into the welding torch. Make sure that it is properly aligned and secured within the torch.
3. Adjust the Wire Feed Speed:
Set the wire feed speed according to the specifications recommended for the specific flux core wire being used. This can usually be found on the packaging or in the welding wire manufacturer’s documentation.
4. Set the Voltage:
Adjust the voltage settings on the welding machine to match the thickness of the material being welded. Refer to the welding machine’s instruction manual for guidance on selecting the appropriate voltage settings.
5. Prepare the Workpiece:
Ensure that the workpiece is clean and free from any oil, grease, or other contaminants. Use a wire brush or suitable cleaning solution to remove any surface impurities.
6. Position the Torch:
Hold the torch at a slight angle and position it approximately 1/4 inch away from the workpiece. This distance may vary depending on the specific welding technique and the thickness of the material.
7. Start Welding:
Engage the trigger on the welding torch to start the welding process. Move the torch steadily along the joint to ensure an even and consistent weld bead.
8. Inspect the Weld:
Once the weld is complete, inspect it for any defects or irregularities. Repair any issues before proceeding.
Following these steps will help you set up your gasless flux core welding torch properly, ensuring optimal performance and successful welds. Practice, patience, and attention to detail will help you refine your technique and achieve professional-quality results.
Performing a Test Weld and Making Fine-Tune Adjustments
Once you have set up your MIG welder for flux core wire, it’s important to perform a test weld to ensure that everything is working as expected. This will allow you to make any necessary fine-tune adjustments before beginning your actual welding project.
First, make sure that you are wearing the appropriate safety gear, including gloves, a welding helmet, and a welding jacket. Safety should always be your top priority when working with welding equipment.
Next, prepare your workpiece by cleaning off any dirt, debris, or rust. This will ensure proper adhesion and a clean weld. You can use a wire brush or a grinder to clean the surface if necessary.
Position the workpiece in a clamp or fixture, ensuring that it is secure and stable. This will allow you to maintain a steady hand and produce a smoother weld.
Now, it’s time to perform the test weld. Position the MIG gun approximately 1/4 to 3/8 inch away from the workpiece, angling it at about a 15-degree angle. Make sure that your welding gun is aligned with the joint you wish to weld.
Depress the trigger on the welding gun to initiate the arc. As you do this, begin moving the gun steadily along the joint, maintaining a consistent travel speed. Aim to create a smooth and even weld bead.
While welding, pay attention to the appearance and sound of the weld. A consistent crackling sound and the appearance of a smooth, rounded weld bead indicate a properly set up MIG welder. If you notice any irregularities or issues, such as a popping sound or the appearance of spatter, you may need to make some fine-tune adjustments.
Common adjustments that may need to be made include tweaking the wire feed speed, adjusting the voltage settings, or changing the gas flow rate. These adjustments will depend on the specific characteristics of your MIG welder and the welding conditions.
Make small adjustments one at a time and then perform another test weld to determine if the issue has been resolved. Repeat this process until you achieve the desired weld quality.
Remember, practice makes perfect when it comes to welding. The more you practice and familiarize yourself with your MIG welder, the better your results will be. So don’t be discouraged if your first few welds don’t turn out exactly as you hoped – keep refining your technique and making adjustments as needed.
Questions and answers
What is flux core welding?
Flux core welding is a type of welding process that uses a hollow wire electrode filled with flux to protect the weld from atmospheric contaminants. The flux also helps to stabilize the arc and improve the quality of the weld.
