How To Add Gas To A Clarke Mig Welder
MIG welding is a popular welding technique that uses the process of metal inert gas (MIG) to join two pieces of metal together. One important component of MIG welding is the use of shielding gas, which protects the weld from contamination and helps create a clean, strong joint.
If you own a Clarke MIG welder, adding gas to it is a relatively simple process that can be done in just a few steps. Here’s a step-by-step guide on how to add gas to your Clarke MIG welder.
Step 1: Before you begin, make sure you have the correct type of gas for your Clarke MIG welder. Most Clarke MIG welders require a mixture of 75% argon and 25% carbon dioxide (CO2). Check your welder’s manual or consult with a welding supply store to ensure you have the right gas for your specific model.
Step 2: Locate the gas connection on your Clarke MIG welder. This is usually located on the side of the welder, near the wire feed mechanism. It is typically a threaded fitting that can be connected to the gas cylinder.
Step 3: Attach the gas regulator to the gas cylinder. The gas regulator controls the flow of gas from the cylinder to the welder. Make sure the gas regulator is securely attached and tightened to prevent any leaks.
Step 4: Connect the gas hose to the gas regulator. The gas hose is usually a flexible rubber or plastic hose that connects the gas regulator to the welder. Attach one end of the hose to the gas regulator and the other end to the gas connection on your Clarke MIG welder. Make sure the connections are tight and secure.
Step 5: Open the valve on the gas cylinder. Slowly turn the valve on the gas cylinder counterclockwise to open it. This will allow the gas to flow from the cylinder through the regulator and into the welder. Listen for any hissing sounds, which could indicate a gas leak.
Step 6: Adjust the gas flow rate. Use the gas flow control knob on the gas regulator to adjust the flow rate of the shielding gas. Refer to your welder’s manual for the recommended flow rate for your specific welding project.
Once you’ve followed these steps, you’ll be ready to start MIG welding with your Clarke welder using the added gas. Remember to always wear proper safety equipment, such as a welding helmet and gloves, when welding. Happy welding!
What is a Clarke Mig Welder?
A Clarke Mig Welder is a type of welding machine that is used for Metal Inert Gas (MIG) welding. MIG welding is a process that uses a wire electrode to join metal pieces together. The electrode is fed through the welding gun and melts to form a weld pool on the metal surface. A shielding gas is also used to protect the weld pool from contaminants in the air.
Clarke Mig Welders are known for their reliability and ease of use. They are suitable for both professional welders and DIY enthusiasts. These machines are capable of welding various types of metal, including steel, stainless steel, and aluminum.
One of the key features of Clarke Mig Welders is their adjustable wire feed speed and voltage settings, which allow for precise control over the welding process. This makes them a versatile tool that can be used for a wide range of welding applications.
In addition to their adjustable settings, Clarke Mig Welders also come with a variety of other useful features, such as a built-in gas solenoid valve and a thermal overload protection system. These features help to ensure safe and efficient welding operations.
Overall, Clarke Mig Welders are a popular choice for welders of all skill levels due to their durability, versatility, and user-friendly design.
Why do you need gas for a Clarke Mig Welder?
Gas is an essential component for operating a Clarke Mig Welder. When using a Mig welder, gas is necessary to provide a shielding atmosphere around the weld pool. This shielding gas helps protect the weld from contamination and oxidation, resulting in a cleaner and stronger weld.
When a Mig welder is in use, a wire electrode is continuously fed through the welding gun and melted to create the weld. As the wire melts, it produces a weld pool that needs protection from the surrounding air. Without proper shielding gas, the weld pool can be exposed to oxygen and other elements, leading to a weak and porous weld.
The gas used in a Mig welder is typically a combination of argon and carbon dioxide, known as CO2. This mixture provides an ideal balance of protection and cost-effectiveness. The argon helps to stabilize the arc and reduce spatter, while the CO2 helps to increase penetration and improve the overall welding performance.
By using the appropriate shielding gas, a Clarke Mig Welder ensures that the weld pool remains protected and that the resulting weld is of high quality. Gas also plays a crucial role in preventing defects such as porosity, cracking, and excessive spatter.
It is important to note that different welding applications may require different types of shielding gases. For example, stainless steel welding may require a gas mixture that includes helium for better heat transfer. Therefore, it is essential to consult the welder’s manual or seek professional advice to determine the appropriate gas for your specific welding needs.
In conclusion, the use of gas in a Clarke Mig Welder is essential for creating high-quality welds. It provides a shielding atmosphere that protects the weld pool from contamination and oxidation, resulting in stronger and more durable welds. With the proper shielding gas, you can achieve professional-level welds with your Clarke Mig Welder.
Step-by-Step Guide
Here is a step-by-step guide on how to add gas to a Clarke MIG welder:
-
Prepare the Welder
Before adding gas to your Clarke MIG welder, make sure the welder is turned off and unplugged from the power source. This ensures safety during the process and prevents any accidents.
-
Gather the Necessary Equipment
Collect all the equipment you will need to add gas to your Clarke MIG welder. This typically includes a gas cylinder, gas regulator, gas hose, and appropriate fittings.
-
Attach the Gas Cylinder
Securely attach the gas regulator to the gas cylinder according to the manufacturer’s instructions. Make sure to use the correct fittings and tighten them properly.
-
Connect the Gas Hose
Connect one end of the gas hose to the gas regulator and the other end to the gas inlet on your Clarke MIG welder. Ensure a tight and secure connection to prevent any gas leaks.
-
Check for Leaks
After connecting the gas hose, inspect all connections for any signs of gas leaks. Apply an approved leak detection solution or soapy water to the connections and look for bubbles. If any leaks are present, tighten the connections or replace faulty fittings.
-
Open the Gas Cylinder Valve
Gently open the valve on the gas cylinder by turning it counterclockwise. This allows the gas to flow from the cylinder to the regulator and then to the welder.
-
Adjust the Gas Flow
Use the gas flow adjustment knob on the regulator to set the desired gas flow rate. Refer to the welder’s manual or guidelines for the recommended flow rate.
-
Test the Gas Flow
With the gas flow adjusted, turn on the welder and perform a test to ensure proper gas flow. Activate the trigger or switch on the welder without feeding wire to check if the gas shield is being discharged correctly.
-
Begin Welding
Once you have confirmed the gas flow is working correctly, you can start welding with the Clarke MIG welder. Follow the manufacturer’s instructions for the specific welding process and ensure proper safety measures are in place.
Remember to always refer to the Clarke MIG welder’s manual for specific instructions on adding gas and any safety precautions. Following this step-by-step guide will help you successfully add gas to your Clarke MIG welder and ensure proper gas flow during your welding projects.
Step 1: Safety Precautions
It is important to prioritize safety when adding gas to a Clarke Mig Welder.
Before proceeding with the following steps, make sure you have taken the necessary safety precautions:
- Make sure you are wearing proper protective gear, including safety glasses, welding gloves, and a welding apron.
- Ensure that the welding area is well-ventilated to avoid inhaling hazardous fumes. If necessary, use a welding helmet with a built-in respirator.
- Inspect the welding equipment for any visible damage or defects. If you notice any issues, do not proceed and contact a professional for assistance.
- Ensure that the welding machine is turned off and unplugged before starting the gas addition process.
- Keep any flammable materials, such as gasoline or solvents, away from the welding area to prevent the risk of fire or explosions.
- Check that the gas cylinder is secure and in good condition. If you notice any leaks or damage to the cylinder, do not attempt to use it.
- Lastly, familiarize yourself with the user manual provided by Clarke Mig Welder to understand the specific safety guidelines and instructions for adding gas.
By following these safety precautions, you can ensure a safe and successful gas addition process for your Clarke Mig Welder.
Step 2: Prepare the Welder
Before adding gas to your Clarke MIG welder, you need to properly prepare the machine. Follow these steps to ensure that everything is in order:
| 1. | Ensure the welder is turned off and unplugged. |
| 2. | Inspect the gas hose, nozzle, and regulator for any damage or debris. Clean or replace any parts that are worn or clogged. |
| 3. | Make sure the wire feed is disengaged and the wire is not touching anything. |

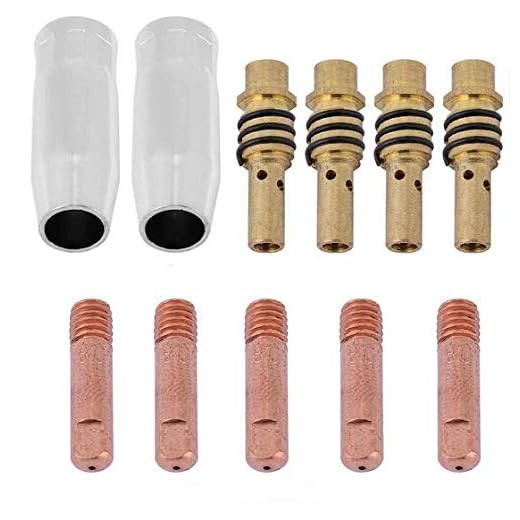

| 4. | Remove the nozzle and contact tip using pliers or a wrench. |
| 5. | Inspect the contact tip for any damage or wear. Replace if necessary. |
| 6. | Clean the contact tip with a wire brush to remove any debris or spatter. |
| 7. | Reinstall the contact tip and nozzle onto the welding gun. |
| 8. | Ensure that all connections are secure and tight. |
Once you have completed these preparations, you are ready to move on to the next step of adding gas to your Clarke MIG welder.
Step 3: Connect the Gas Cylinder
Once you have prepared the gas regulator and hose, it’s time to connect the gas cylinder to your Clarke MIG welder.
Begin by ensuring that the valve on the gas cylinder is fully closed. You can do this by turning the valve clockwise until it stops. This will prevent any gas from leaking out while you make the connection.
Next, locate the gas inlet on your Clarke MIG welder. It is typically located on the back of the machine, near the wire feed assembly.
Take the end of the gas hose that is attached to the gas regulator and carefully insert it into the gas inlet on the welder. Make sure the hose is securely inserted and there are no kinks or bends in the line.
Once the hose is in place, you can now open the valve on the gas cylinder. Slowly turn the valve counterclockwise to open it. You should hear the sound of gas flowing into the welder.
At this point, it’s also a good idea to check for any gas leaks. Apply a small amount of soapy water to the connections between the gas cylinder, hose, and welder. If you see any bubbles forming, there is a leak. In that case, immediately turn off the gas cylinder and tighten the connections until the bubbles stop.
With the gas cylinder connected and the valve open, you are now ready to start welding using the gas shielded method with your Clarke MIG welder.
Remember to always follow proper safety precautions when working with gas cylinders and welding equipment. Consult the manufacturer’s instructions for your specific Clarke MIG welder before attempting to connect the gas cylinder.
Questions and answers
What is a Clarke MIG welder?
A Clarke MIG welder is a type of welding machine that uses metal inert gas (MIG) welding technique. It is commonly used for joining or repairing metal parts.
Why do I need to add gas to a Clarke MIG welder?
You need to add gas to a Clarke MIG welder because the gas acts as a shield to protect the welding area from contaminants and to ensure a clean and strong weld.
What type of gas should I use with a Clarke MIG welder?
You should use a mixture of argon and carbon dioxide (CO2) gas, commonly known as 75% argon/25% CO2, for most general welding applications with a Clarke MIG welder.
How do I add gas to a Clarke MIG welder?
To add gas to a Clarke MIG welder, you need to connect the gas cylinder to the machine using a regulator and hose. Make sure the cylinder valve is closed, then attach the regulator to the cylinder. Connect the other end of the regulator to the hose and the hose to the welder’s gas inlet. Open the cylinder valve slowly to allow the gas to flow into the welder.
Are there any safety precautions I should take when adding gas to a Clarke MIG welder?
Yes, there are several safety precautions you should take when adding gas to a Clarke MIG welder. Make sure the welder is turned off and the power cord is unplugged before starting. Wear appropriate personal protective equipment, such as gloves and safety glasses. Make sure the gas cylinder is secure and stable. Check for any gas leaks before opening the cylinder valve. Always open the valve slowly and avoid inhaling the gas directly.
