How Ro Check Mig Welder Before Use
Before using a MIG welder, it is crucial to conduct a thorough inspection to ensure its proper functioning. This inspection not only contributes to the safety of the operator but also the quality of the welds produced. By checking various components and settings, you can identify potential issues and prevent accidents or subpar welds.
Firstly, start by examining the power source and connections. Ensure that the welder is properly grounded and that the power cable is in good condition, with no visible signs of damage or exposed wires. Check the plug and socket for any loose or frayed connections that may cause electrical hazards. Additionally, make sure the machine is receiving the correct voltage and amperage to operate effectively.
Next, inspect the wire feed system and consumables. Check if the wire feeder is clean and free of debris, as contamination can negatively affect the weld quality. Examine the drive rolls and guide tubes for any signs of wear or damage, as they need to be in good condition to ensure smooth wire feeding. Additionally, ensure that the MIG gun and contact tip are properly assembled and tightened. Replace the contact tip if necessary.
Afterwards, evaluate the gas supply and regulator. Ensure that the gas cylinder is securely fastened to the welder and that the valve is in the closed position. Examine the regulator for any signs of damage or leaks, and ensure that the flow rate is set correctly for the specific welding application. It is important to use the appropriate shielding gas for the material being welded to achieve optimal results.
Finally, don’t forget to check the welder’s settings and controls. Ensure that the wire feed speed and voltage settings are appropriate for the metal thickness and type being welded. Adjust the settings if needed, following the manufacturer’s recommendations or welding procedure specifications. Familiarize yourself with the machine’s controls and safety features, such as the on/off switch, overload protection, and thermal shut-off.
In conclusion, a thorough pre-use inspection of your MIG welder is essential for safe and efficient welding. By checking the power source, wire feed system, gas supply, and welder settings, you can minimize the risk of accidents and ensure high-quality welds. Remember to consult the manufacturer’s manual for specific guidelines and recommendations.
How to Inspect Mig Welder Before Use
Before using a MIG welder, it is important to inspect it to ensure that it is in proper working condition and safe to use. Here are some steps to follow when inspecting a MIG welder:
1. Check the Power Cord
Inspect the power cord of the MIG welder for any signs of fraying or damage. Make sure that the plug is in good condition and fits securely into the power outlet. If there are any signs of damage, the power cord should be replaced before using the welder.

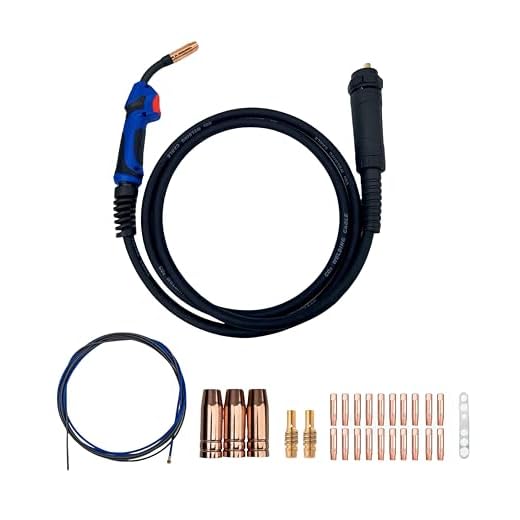

2. Examine the Welding Gun
Inspect the welding gun of the MIG welder for any signs of wear or damage. Check the gun’s trigger, nozzle, and contact tip to ensure that they are in good condition and functioning properly. If any parts are worn out or damaged, they should be replaced before using the welder.

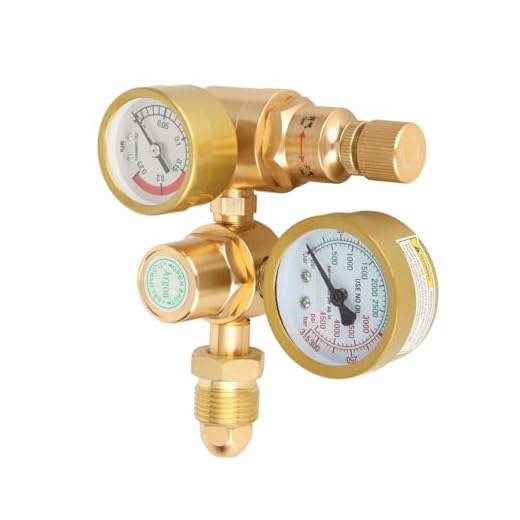

3. Check the Gas Regulator
Inspect the gas regulator of the MIG welder to ensure that it is properly attached and functioning correctly. Check the pressure gauge to make sure that it is within the recommended range. If there are any issues with the gas regulator, it should be repaired or replaced before using the welder.
4. Inspect the Ground Cable
Check the ground cable of the MIG welder for any signs of wear or damage. Make sure that the cable is securely attached to the welder and the work surface. If there are any issues with the ground cable, it should be replaced before using the welder.
5. Test the Safety Features
Before using the MIG welder, test the safety features such as the overload protection and the cooling system. Make sure that all safety features are functioning properly to avoid any accidents or injuries during welding.
By following these steps and inspecting the MIG welder before use, you can ensure that the welder is safe to operate and will produce high-quality welds. Regular maintenance and inspections are essential for the longevity and performance of the MIG welder.
Step 1: Visual Inspection
Before using a MIG welder, it is important to perform a visual inspection to ensure that the machine is in good working condition.
Here are the steps to follow:
-
Check the Power Cord:
- Inspect the power cord for any signs of damage such as fraying or exposed wires.
- Make sure that the plug is intact and properly connected.
-
Inspect the Ground Clamp:
- Check the ground clamp for any loose or damaged connections.
- Ensure that the clamp is securely attached to a clean metal surface.
-
Examine the Gun and Cable:
- Inspect the welding gun for any signs of wear or damage.
- Check the cable for any kinks or cuts.
- Ensure that the cable and gun connections are tight.
-
Inspect the Gas Regulator:
- Check the gas regulator for any leaks or damage.
- Ensure that the regulator is properly attached to the gas cylinder.
By performing a thorough visual inspection, you can identify any potential issues or hazards before using the MIG welder. This will help to ensure your safety and the quality of your welds.
Step 2: Check Connections
Before using a MIG welder, it is important to check all the connections to ensure they are secure and in good condition. Loose or damaged connections can lead to poor weld quality, electrical issues, or even accidents.
Follow these steps to check the connections:
-
Power Connection:
Make sure the MIG welder is properly connected to a reliable power source. Ensure that the power cord is not damaged and that it is securely plugged into a suitable electrical outlet. If the power cord is damaged, it should be replaced before use.
-
Ground Clamp Connection:
The ground clamp is an essential component that provides the welding circuit with a complete path for the electrical current. Ensure that the ground clamp is securely connected to a clean metal surface on the workpiece or the welding table. Make sure there is no paint, rust, or any other contamination on the surface where the ground clamp is attached.
-
Welding Gun Connection:
The welding gun, also known as the MIG torch, must be securely connected to the welding machine. Check that the gun cable is properly inserted and tightened into the appropriate socket on the machine. It is also important to inspect the gun cable for any signs of damage, such as cuts or exposed wires. If any damage is found, the gun cable should be replaced.
-
Gas Cylinder Connection:
If your MIG welder uses shielding gas, ensure that the gas cylinder is securely connected to the machine. Check that the regulator is properly attached and tightened. Inspect the gas hose for any signs of wear or damage. If the gas hose is damaged, it should be replaced.
-
Wire Feeder Connection:
The wire feeder is responsible for feeding the welding wire from the spool to the welding gun. Check that the wire feeder is securely connected to the machine. Inspect the wire feed mechanism for any signs of wear or damage. Make sure the wire feed roller is properly aligned and tightened.
By thoroughly checking these connections, you can ensure that your MIG welder is ready for safe and efficient use. If any issues or concerns are identified during the inspection, it is important to address them before starting any welding operations.
Step 3: Test Electrical Functions
Before using a MIG welder, it is important to test its electrical functions to ensure that everything is working properly. This will help prevent any potential accidents or damage to the equipment.
1. Power On
First, make sure the MIG welder is connected to a power source and turned on. Check for any visible signs of damage to the power cord, plug, or outlet. It is important to use a properly grounded outlet to prevent any electrical hazards.
2. Wire Feeder
Next, check the wire feeder mechanism. Ensure that the wire feed rollers are clean and in good condition. Inspect the wire for any kinks or tangles that could interfere with the feeding process.
3. Gun Trigger
Check the functionality of the gun trigger. Press the trigger and listen for any abnormal sounds or vibrations. Make sure the trigger is responsive and that it returns to its original position when released.
4. Gas Flow
Verify that the gas flow is functioning properly. Turn on the gas supply and listen for the sound of gas flowing through the nozzle. Ensure that there are no leaks or obstructions that could affect the welding process.
5. Ground Clamp
Inspect the ground clamp for any signs of damage or wear. Make sure it is securely attached to the workpiece and that the electrical connection is tight. A loose or damaged ground clamp can result in poor welding quality.
6. Safety Features
Finally, test any safety features that are present on the MIG welder. This may include thermal overload protection or a circuit breaker. Ensure that these features are functioning correctly and provide the necessary level of protection.
By thoroughly testing the electrical functions of a MIG welder before use, you can ensure that the equipment is in proper working order and minimize the risk of accidents or malfunctions during the welding process.
Step 4: Verify Gas Supply
Before using a MIG welder, it is important to ensure that the gas supply is functioning properly. MIG welding requires a shielding gas, such as argon or a mixture of argon and carbon dioxide, to protect the weld from contamination.
1. Check the Gas Cylinder
Inspect the gas cylinder to make sure it is securely fastened and the valve is closed. Look for any signs of damage or leaks, such as an irregular hissing sound or a strong scent of gas. If you notice any issues, do not proceed with using the welder and seek professional assistance.
2. Check the Gas Regulator
Examine the gas regulator to ensure it is properly attached to the cylinder and adjusted to the correct pressure for the specific welding job. Refer to the welder’s manual for the recommended pressure settings. If the regulator is damaged or not functioning correctly, do not attempt to use the welder and consult a professional.
3. Perform a Gas Flow Test
To verify the gas supply, perform a gas flow test. Connect the welding gun to the welder and place the nozzle close to a piece of paper. Depress the trigger to release the gas and check for a steady and consistent flow. If there is no gas or the flow is weak, there may be an issue with the gas supply, such as a clogged nozzle or a faulty gas solenoid valve.
If you encounter any problems or concerns during the gas supply verification process, it is recommended to consult the manufacturer’s instructions or contact a certified technician for assistance. Operating a MIG welder without a proper gas supply can lead to poor weld quality and potential safety hazards.
Step 5: Perform Test Weld
Once you have completed the previous steps and ensured that your MIG welder is functioning properly, it is time to perform a test weld. This will allow you to evaluate the quality of the weld and make any necessary adjustments before beginning your actual welding project.
Before starting the test weld, make sure you have selected the appropriate settings for your welder based on the type and thickness of the metal you will be welding. Refer to the welding chart or manual provided by the manufacturer for guidance.
Next, prepare the metal pieces that you will be welding together. Make sure they are clean and free from rust, paint, or any other contaminants. Use a wire brush or sandpaper to remove any surface impurities.
Position the metal pieces in the desired welding position and secure them firmly using clamps or a vice. Then, put on the necessary safety gear, such as welding gloves and a welding helmet.
Now, it’s time to begin the test weld. Place the nozzle of the MIG gun close to the joint between the metal pieces, keeping a comfortable position and angle. Depress the trigger and begin welding, moving the gun in a controlled motion along the joint. Pay attention to the welding pool and make sure it is adequately penetrating the metal.
Observe the appearance of the weld bead as well as the sound and spatter produced during the welding process. A good weld should have a smooth and uniform bead with minimal spatter. If you notice any irregularities, such as excessive spatter or a lack of fusion, you may need to adjust your welding settings or technique.
After completing the test weld, inspect the weld bead and joint for any defects, such as cracks or porosity. If any issues are present, address them before proceeding with your actual welding project.
By performing a test weld, you can ensure that your MIG welder is properly set up and capable of producing high-quality welds. This step is crucial for achieving successful welding results and avoiding potential problems down the line.
Questions and answers
Why is it important to check a MIG welder before use?
It is important to check a MIG welder before use to ensure that it is in proper working condition and to prevent any accidents or injuries. Checking the welder beforehand allows you to identify any potential issues or defects that may affect the quality and safety of your welding work. It is also an opportunity to make any necessary adjustments or repairs before starting your welding project.
What are some things to look for when checking a MIG welder?
When checking a MIG welder, there are several things to look for. First, inspect the welding gun and cables for any signs of damage or wear. Check the gas flow regulator to ensure it is functioning properly. Test the wire feeder to make sure it is feeding the wire smoothly. Examine the grounding clamp and connections to ensure they are secure. Finally, check the power source and controls to ensure they are in good working order.

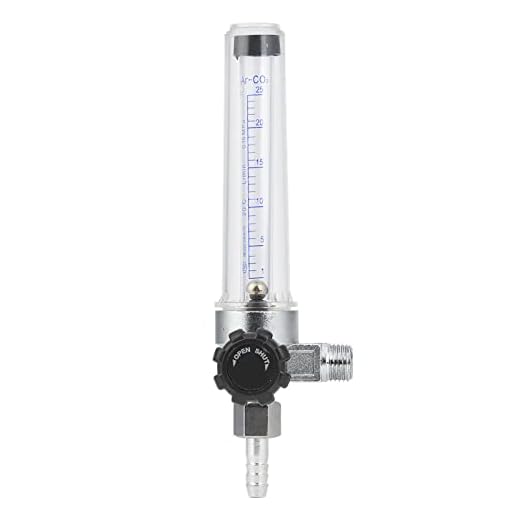

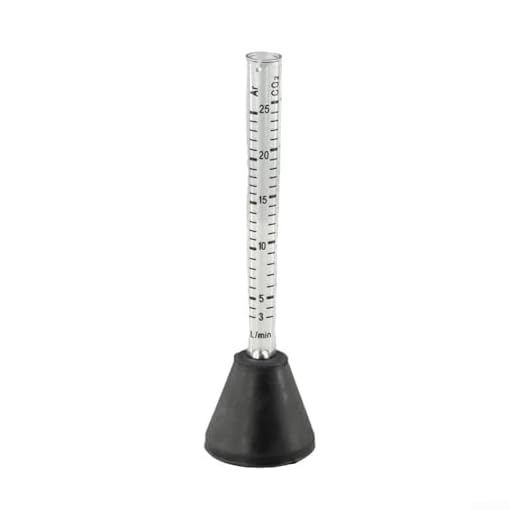

How can I check the gas flow regulator on a MIG welder?
To check the gas flow regulator on a MIG welder, you can perform a simple test. Attach a flowmeter to the regulator and open the valve slowly. The flowmeter should indicate the correct flow rate of shielding gas for the specific welding process you are using. If the flow rate is not within the recommended range, you may need to adjust the regulator or check for any blockages in the gas lines.
What should I do if I find any issues or defects when checking my MIG welder?
If you find any issues or defects when checking your MIG welder, it is important to address them before using the welder. Depending on the severity of the problem, you may need to troubleshoot the issue and make any necessary repairs or adjustments. If you are not qualified to fix the problem yourself, it is recommended to contact a professional or the manufacturer for assistance. Remember, it is better to be safe and ensure the proper functioning of your MIG welder before starting any welding work.
