How to plumb a radiator
Plumbing a radiator is an essential skill for any homeowner looking to improve their heating system. Whether you are replacing an old radiator or installing a brand new one, proper plumbing ensures efficient and effective heating throughout your home. By following a step-by-step process and using the right tools, you can successfully plumb a radiator on your own.
Before you begin, it’s important to familiarize yourself with the basic components of a radiator system. The radiator itself is a metal device that heats up the surrounding air by circulating hot water or steam within it. The water supply line brings the hot water or steam to the radiator, while the return line carries the cooled fluid back to the boiler. Understanding these components will help you navigate the plumbing process with ease.
To start plumbing a radiator, you’ll first need to shut off the water supply to your heating system. This can usually be done at the main water shutoff valve, which is typically located near your water meter or boiler. Once the water is shut off, you can begin the installation process by positioning the radiator in the desired location. It’s important to choose a location that allows for proper heat distribution and easy connection to the water supply and return lines.

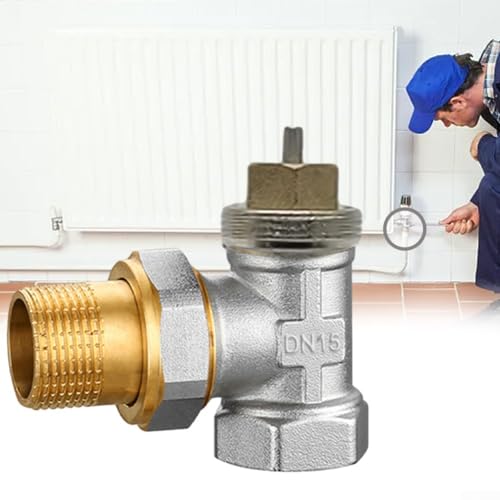

Next, you’ll need to attach the radiator valve assembly to the radiator. The valve assembly consists of a supply valve, a return valve, and a lockshield valve. The supply valve controls the flow of hot water or steam into the radiator, while the return valve regulates the flow of cooled fluid back to the boiler. The lockshield valve helps balance the water flow through the radiator. Make sure to tighten all connections to avoid any leaks.
After attaching the valve assembly, you can proceed to connect the water supply and return lines. It’s recommended to use copper or PEX pipes for durability and flexibility. Measure and cut the pipes to the appropriate length, ensuring a proper fit between the radiator and the boiler. Use fittings and connectors to join the pipes together, making sure to secure all connections with proper fasteners or soldering. Don’t forget to install an air vent valve to release any air trapped inside the radiator.
Once the connections are complete, you can turn the water supply back on and test the radiator for any leaks. Make sure to check all valves, fittings, and connections, and tighten them if necessary. Once you confirm that there are no leaks, you can bleed the air from the radiator by opening the air vent valve. This will allow for optimal heating performance. Regular maintenance and periodic check-ups will keep your radiator functioning efficiently for years to come.
In conclusion, with the right knowledge and tools, plumbing a radiator can be a manageable DIY project. By understanding the basics of a radiator system, properly positioning the radiator, and following the steps for connecting the water supply and return lines, you can ensure efficient and effective heating throughout your home.
Preparing for radiator installation
Before installing a radiator, it is important to make sure you have all the necessary tools and materials. Here are some steps to take before starting the installation process:
1. Measure and plan: Measure the area where you want to install the radiator to ensure it will fit properly. Consider any obstacles or obstructions that may require adjustments to the installation.
2. Choose the right radiator: Select a radiator that suits your heating needs and the style of your space. Consider factors such as the size, heat output, and design of the radiator.
3. Purchase necessary materials: Gather all the materials required for the installation, including pipes, valves, fittings, and any additional accessories.
4. Shut off the water supply: Before starting the installation, ensure that the water supply to the heating system is turned off. This will prevent any water leaks or accidents during the process.
5. Drain the system: Open all the radiators in your heating system to allow the water to drain out completely. Use a bucket or container to catch any excess water.
6. Remove any obstacles: Clear the area around the installation site, removing any furniture or objects that may hinder the installation process. This will provide easier access for the radiator installation.
7. Properly seal the connections: Ensure that all connections, including pipes, valves, and fittings, are properly sealed. This will prevent any water leaks or other issues once the radiator is installed.
By following these preparatory steps, you can ensure a smooth and successful installation of your new radiator.
Safety precautions and gathering tools
Before you begin to plumb a radiator, it’s essential to take proper safety precautions to minimize any risks or accidents. Make sure to turn off the power supply to the heating system to avoid electrical shocks. If you’re working with a pressurized system, depressurize it carefully to prevent any injury.
When gathering tools for the job, make sure to have the following:
- A radiator valve or thermostat valve
- Pipe wrenches or adjustable wrenches
- A pipe cutter or a hacksaw
- A pipe deburring tool
- A pipe cleaner or emery cloth
- A level
- A pencil or marker
- A tape measure
- A bucket or a towel to catch any leakage
- A flaring tool, if necessary
- Teflon tape or thread sealant
Having these tools ready will ensure that you can work efficiently and effectively to plumb your radiator without any unnecessary delays or issues.
Choosing the right position
When it comes to installing a radiator, choosing the right position is crucial for efficient heating. Here are some important considerations to keep in mind:
1. Heat distribution
The position of the radiator should be chosen in a way that allows for optimal heat distribution in the room. This means placing the radiator in a central location where the hot air can reach all corners of the space. Avoid positions that may obstruct the flow of heat, such as behind furniture or curtains.
2. Wall space
Ensure that you have enough wall space to accommodate the radiator. Measure the width and height of the radiator you plan to install and choose a position that allows for clearance on all sides. This will ensure that the radiator operates efficiently without any blockages.
3. Plumbing accessibility
Consider the accessibility of the plumbing connections. The chosen position should allow for easy access to the pipes and valves for installation and future maintenance. Avoid placing the radiator in areas where the pipes would require excessive bending or additional work to connect.
By taking these factors into account when choosing the position for your radiator, you can ensure that it not only provides effective heating but also makes it easier for installation and maintenance.
Factors to consider when positioning the radiator
Proper positioning of a radiator is essential to ensure optimal heat distribution and efficiency in a room. Here are some factors to consider when determining the best location for your radiator:
- Heat distribution: The radiator should be positioned in a location that allows heat to circulate evenly throughout the room. Avoid placing it behind furniture or curtains, as these can obstruct the flow of heat.
- Size of the room: The size of the room will play a role in determining the appropriate size and number of radiators needed. Larger rooms may require multiple radiators or larger units to ensure adequate heating.
- Windows and doors: Placing a radiator near windows and doors can help prevent cold drafts from entering the room. It’s advisable to position the radiator underneath a window to offset the cool air that enters through the glass.
- Accessibility: Radiators should be easily accessible for maintenance and cleaning. Avoid placing items in front of or blocking access to the radiator, as this can hinder its performance and make it difficult to carry out necessary repairs.
- Obstructions: Check for any obstructions that may impede the heat output of the radiator. Ensure that it is not obstructed by furniture, shelves, or other objects that could block the airflow and reduce the effectiveness of the radiator.
Consider these factors carefully when determining the best position for your radiator. Taking the time to plan and position the radiator correctly will ensure efficient heating and a comfortable environment in your home or office.
Installing the radiator
Once you have chosen a suitable location for your radiator, follow these steps to install it:
Step 1: Prepare the area
Clear the area where the radiator will be positioned. Remove any furniture or objects that may obstruct the installation process.
Step 2: Determine the height
Consider the ideal height for your radiator. Standard heights for radiators are typically around 600mm above the floor. However, you may need to adjust the height based on your specific needs.
Step 3: Attach brackets to the wall
Hold the radiator against the wall at the desired height. On either side of the radiator, mark the points where the brackets will be installed. Attach the brackets securely to the wall using screws and a level to ensure they are straight.
Step 4: Connect the valves
Connect the necessary valves to your radiator. These valves will control the flow of hot water into the radiator and allow you to regulate the temperature. Consult the manufacturer’s instructions for the specific valve installation process.
Step 5: Position the radiator
Place the radiator onto the installed brackets, ensuring it is level and securely attached. Double-check that all connections are tight, and there are no leaks. Use a spirit level to ensure the radiator is straight.
Step 6: Pipes and pipe covers
Install any necessary pipes to connect the radiator to the heating system. Trim them to the appropriate length and use fittings to connect them securely. Additionally, consider using pipe covers to conceal the pipes for a neater appearance.
Step 7: Bleed the radiator
Once you have installed the radiator and connected the pipes, you will need to bleed the radiator to remove any trapped air. Locate the bleed valve, typically found at the top corner of the radiator, and use a radiator key or a flat screwdriver to open it slightly until you hear a hissing sound. Once water starts to flow steadily, close the bleed valve.
Step 8: Test and adjust
Turn on your heating system and allow the radiator to heat up. Check for any leaks or issues with the connections. If necessary, make any adjustments to ensure the radiator functions properly.
| Material | Quantity |
|---|---|
| Radiator valves | 2 |
| Brackets | 2 |
| Screws | As needed |
| Pipes | As needed |
| Fittings | As needed |
| Pipe covers | Optional |
Connecting the radiator to the heating system
Once you have chosen the perfect location for your radiator, it’s time to connect it to the heating system. Here is a step-by-step guide on how to do it:
- Start by turning off the main water supply to the heating system. This is important for your safety and to avoid any leaks.
- Determine the type of radiator you have and the connection method it requires. Most radiators have either a bottom or side connection.
- If your radiator has a bottom connection, use a wrench to loosen the valve located at the bottom. If it has a side connection, loosen the valves on both sides of the radiator.
- Next, connect the radiator valves to the heating pipes. You will need to use a wrench to tighten the valves securely. Make sure not to overtighten to avoid damage.
- If your radiator has a thermostatic radiator valve (TRV), attach it to the valve body. The TRV allows you to control the temperature of the radiator.
- Tighten all connections and ensure they are leak-free. Use plumber’s tape or Teflon tape on the threads to create a watertight seal.
- With the connections secure, turn on the main water supply to the heating system. Check for any leaks and fix them if necessary.
Now that your radiator is successfully connected to the heating system, you can turn it on and enjoy the warmth it brings to your home. Remember to bleed the radiator if necessary to remove any trapped air and ensure maximum efficiency.
Bleeding the radiator
Bleeding a radiator is an essential part of maintaining and optimizing the efficiency of your heating system. Over time, air can become trapped inside the radiator, preventing it from heating up fully and reducing its overall performance. Bleeding your radiators helps to release this trapped air, allowing the hot water to circulate freely and ensuring that each room in your home is efficiently heated.
Why bleed a radiator?
Air pockets in your radiators can cause several issues, including:
- Uneven heat distribution throughout your home
- Your radiators taking longer than usual to heat up
- Unusual noises, such as gurgling or knocking, coming from the radiators
- Inefficient operation of your heating system, resulting in higher energy bills
How to bleed a radiator:
1. Make sure your central heating system is turned off and the radiators are cool to the touch.
2. Locate the bleed valve, typically located at the top end of the radiator. It is usually a square or hexagonal brass fitting.
3. Place a towel or a container beneath the valve to catch any water that may be released.
4. Use a radiator key or a flat-blade screwdriver to carefully turn the valve anticlockwise by about a quarter of a turn. You will hear a hissing sound as the air is being released.
5. Once the hissing sound stops and water starts to drip out of the valve, quickly close the valve by turning it clockwise.
6. Wipe away any spilled water and make sure the valve is secure.
7. Repeat the process for any other radiators that require bleeding.
How often should you bleed your radiators?
It is recommended to bleed your radiators at least once a year, preferably before the colder months when you’ll rely on your heating system the most. However, if you notice any of the aforementioned issues, it is advisable to bleed the affected radiator as soon as possible.
In conclusion, bleeding your radiators is a simple yet crucial task for maintaining efficient heating in your home. By releasing trapped air, you can ensure that each room is comfortably heated without energy waste or other related issues.
