How to calculate magnetic flux density

If you have ever wondered how to measure the strength of magnetic fields, you are not alone. Understanding the magnetic flux density is crucial in many fields of study, from physics and engineering to technology and medicine. Magnetic flux density, also known as magnetic field strength or magnetic induction, is a fundamental property that allows us to quantify the intensity of a magnetic field.

To calculate the magnetic flux density, you need to consider two factors: magnetic field strength and area. The magnetic field strength represents the force exerted by a magnetic field on a unit mass of a magnetic substance, while the area refers to the surface over which the field acts. The relationship between magnetic field strength, area, and flux density is expressed by the formula B = μH.

In this formula, B represents the magnetic flux density, μ is the permeability of the medium or material in question, and H represents the magnetic field strength. The permeability accounts for the material’s ability to generate a magnetic field in response to an applied magnetic force. It can vary depending on the material, and its value is typically measured in units of Henry per meter (H/m).

Calculating the magnetic flux density can be done using various methods, depending on the specifications of the magnetic field and the shape of the area of interest. Different situations may require different approaches, such as using the basic formula with known values or employing more advanced mathematical techniques. Understanding the fundamentals of magnetic flux density is essential in practical applications, such as designing magnetic devices or analyzing magnetic fields in scientific experiments.

Calculating Magnetic Flux Density: Step-by-Step Guide

Magnetic flux density, also known as magnetic field strength or magnetic induction, is a measure of the strength of a magnetic field. It is typically measured in teslas (T) or gauss (G).

Tesla Meter Handheld Magnetic Field Detector Tester Magnetic Flux Density Permanent Magnet Gauss Meter EMF Meter 0 ‑ 2500mT
Tesla Meter Handheld Magnetic Field Detector Tester Magnetic Flux Density Permanent Magnet Gauss Meter EMF Meter 0 ‑ 2500mT
£70.32
Amazon.co.uk
Amazon price updated: October 4, 2024 6:13 am
See also  How to use beko oven

To calculate magnetic flux density, you will need to know the magnetic field strength and the area through which the magnetic field passes. The formula for calculating magnetic flux density is:

Formula:

B = Ф / A

Where:

  • B is the magnetic flux density (in teslas or gauss)
  • Ф is the magnetic flux (in webers)
  • A is the cross-sectional area through which the magnetic field passes (in square meters or square centimeters)

Here is a step-by-step guide to calculating magnetic flux density:

Step 1: Gather the necessary information

Before you can calculate magnetic flux density, gather the following information:

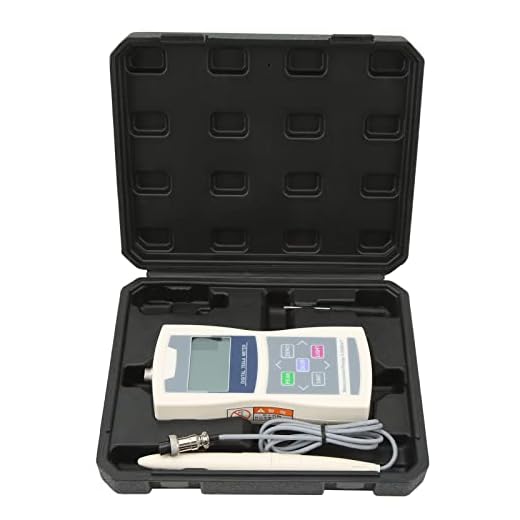

Digital Magnetic Field Detector Handheld Magnetic Flux Density Permanent Magnet Gauss Meter ElectroMagnetic Fields Level Measurement
Digital Magnetic Field Detector Handheld Magnetic Flux Density Permanent Magnet Gauss Meter ElectroMagnetic Fields Level Measurement
£166.99
Amazon.co.uk
Amazon price updated: October 4, 2024 6:13 am
  • The magnetic flux (Ф) in webers
  • The cross-sectional area (A) in square meters or square centimeters

Step 2: Plug the values into the formula

Take the values you gathered in step 1 and plug them into the formula:

B = Ф / A

Step 3: Calculate the magnetic flux density

Divide the magnetic flux by the cross-sectional area to calculate the magnetic flux density. Make sure to use the correct units for both the magnetic flux and the area:

Magnetic Flux (Ф) Cross-sectional Area (A) Magnetic Flux Density (B)
Value in webers (Wb) Value in square meters (m2) or square centimeters (cm2) Value in teslas (T) or gauss (G)

By following these steps and using the formula, you can calculate the magnetic flux density for a given magnetic flux and cross-sectional area. This calculation is crucial in many fields and applications, including electrical engineering, physics, and magnetism research.

The Basics of Magnetic Flux Density

Magnetic flux density represents the strength of a magnetic field at a specific point. It is a measure of the number of magnetic field lines per unit area that pass through a surface placed perpendicular to the field. The SI unit of magnetic flux density is called the tesla (T).

BuyWeek Magnetic Field Detector, Digital Magnetic Flux Density Tester Handheld Portable Permanent Magnet Gauss Meter with Probe
BuyWeek Magnetic Field Detector, Digital Magnetic Flux Density Tester Handheld Portable Permanent Magnet Gauss Meter with Probe
£186.69
Amazon.co.uk
Amazon price updated: October 4, 2024 6:13 am
See also  How to make candy floss

To understand magnetic flux density, it is important to first grasp the concept of magnetic field lines. Magnetic field lines are imaginary lines that help visualize the direction and strength of a magnetic field. They are like “invisible threads” created by a magnet or a current-carrying wire. The density of these field lines reveals the strength of the magnetic field.

Magnetic Field Strength and Teslas

Magnetic field strength is a separate concept from magnetic flux density. The magnetic field strength refers to the intensity of a magnetic field, while the magnetic flux density indicates the concentration of magnetic field lines passing through a given area. Teslas serve as the unit of measure for both concepts.

One tesla is equal to one weber per square meter (1 T = 1 Wb/m²). A weber, represented as Wb, measures the total magnetic flow within an area, whereas a tesla quantifies the density of magnetic field lines passing through a specific surface.

Calculating Magnetic Flux Density

The magnetic flux density at a given point can be calculated using the formula B = μ₀ * (I / 2πr), where B represents the magnetic flux density at the point, μ₀ is the permeability constant, I is the current flowing through a conductor, and r is the perpendicular distance between the conductor and the point. This formula applies to the field due to a long straight conductor.

For different configurations of conductors and magnets, specific formulas are used to calculate the magnetic flux density. The formula may vary depending on factors such as the shape, position, and arrangements of magnets or conductors involved.

Oumefar Gauss Meter, Digital Magnetic Field Detector Handheld Portable Magnetic Flux Density Permanent Magnet Gauss Meter with Probe
Oumefar Gauss Meter, Digital Magnetic Field Detector Handheld Portable Magnetic Flux Density Permanent Magnet Gauss Meter with Probe
£114.89
Amazon.co.uk
Amazon price updated: October 4, 2024 6:13 am

Understanding and calculating magnetic flux density is crucial in various fields, including electrical engineering, physics, and magnetism research. It allows for the prediction, analysis, and design of systems involving magnetic fields, such as electric motors, transformers, and magnetic resonance imaging (MRI) machines.

See also  How should board ends be fastened to a joist

Key Formulas for Magnetic Field Calculation

When calculating magnetic flux density, there are several important formulas that are commonly used. Whether you are working on electromagnetic problems or electrical engineering projects, knowing these formulas can be essential. Here are some of the key formulas for magnetic field calculations:

Gauss’s Law for Magnetism

Gauss’s Law for magnetism states that the total magnetic flux through a closed surface is zero. This law can be expressed using the following formula:

∮B · dA = 0

Where B is the magnetic field vector and dA is the area vector of the closed surface.

Digital Magnetic Field Detector,Portable Magnetic Field Detector Digital Magnetic Field Detector Handheld Gauss Meter Magnetic Flux Density Tester Digital Teslas Meter 0-2500mT
Digital Magnetic Field Detector,Portable Magnetic Field Detector Digital Magnetic Field Detector Handheld Gauss Meter Magnetic Flux Density Tester Digital...
£123.62
Amazon.co.uk
Amazon price updated: October 4, 2024 6:13 am

Biot-Savart Law

The Biot-Savart law is used to calculate the magnetic field generated by a current-carrying wire. The formula is as follows:

B = (μ₀ / 4π) ∫ (I × r̂) / r² dl

Where B is the magnetic field, μ₀ is the permeability of free space (4π × 10⁻⁷ T·m/A), I is the current flowing through the wire, r̂ is the unit vector pointing from the wire to the point of interest, r is the distance between the wire and the point of interest, and dl is a differential length vector along the wire.

Ampere’s Circuital Law

Ampere’s Circuital Law relates the magnetic field around a closed loop with the current enclosed by that loop. The formula is given by:

∮B · dl = μ₀I

Digital Teslas Meter, Teslas Gauss Meter Digital Magnetic Field Detector Handheld Portable Magnetic Flux Density Permanent Magnet Gauss Meter with Probe
Digital Teslas Meter, Teslas Gauss Meter Digital Magnetic Field Detector Handheld Portable Magnetic Flux Density Permanent Magnet Gauss Meter with Probe
£129.80
Amazon.co.uk
Amazon price updated: October 4, 2024 6:13 am

Where B is the magnetic field vector, dl is a differential length vector along the loop, μ₀ is the permeability of free space, and I is the total current enclosed by the loop.

These formulas are essential for calculating magnetic flux density in various scenarios. Understanding and applying them correctly will enable you to analyze and design magnetic systems effectively.
