How To Cut Rabbet Joints With Table Saw
Creating strong and precise joints is essential in woodworking, and one method that is widely used is the rabbet joint. A rabbet joint is formed by cutting a groove or recess along the edge of a piece of wood, allowing another piece to fit snugly into it. This joint is commonly used in cabinetry, furniture making, and other woodworking projects.
While there are various tools and methods to cut rabbet joints, using a table saw provides a convenient and accurate way to achieve clean and precise cuts. With the right setup and technique, you can easily create rabbet joints that fit together seamlessly.
To cut rabbet joints with a table saw, you will need a rip blade and a dado blade. The rip blade is used to make the initial cut along the edge of the wood to create the recess, while the dado blade is used to widen the groove to the desired depth. It is important to use the appropriate safety precautions when working with these blades, such as wearing eye protection and using a push stick to guide the wood through the saw.
The first step in cutting rabbet joints is to set up the table saw. Adjust the rip fence to the width you want the rabbet to be, and set the height of the dado blade to the desired depth. Make sure the blades are securely in place and the table saw is properly aligned.
Once your table saw is properly set up, you can begin cutting the rabbet joints. Start by making a pass along the edge of the wood with the rip blade, keeping the wood pressed firmly against the rip fence. This will create the initial recess for the rabbet joint. Then, switch to the dado blade and make additional passes to widen the groove to the desired depth.
Remember to take your time and make precise, deliberate cuts. It is also a good idea to make test cuts on scrap pieces of wood before cutting the actual rabbet joints. This will allow you to make any necessary adjustments to the setup or technique before working on your project pieces.
In conclusion, cutting rabbet joints with a table saw can provide you with strong and precise joints for your woodworking projects. By following the proper setup and technique, you can achieve clean and accurate cuts that will result in a professional-looking finished product.
What are Rabbet Joints and why they are important in woodworking
Rabbet joints are a type of joint used in woodworking to create a groove or recess along the edge of a piece of wood. The groove is typically created with a table saw or a router, and allows another piece of wood to fit snugly into the recess, creating a strong and secure bond.
There are several reasons why rabbet joints are important in woodworking:
1. Increased Strength:
Rabbet joints provide increased strength to a woodworking project. By creating a groove or recess along the edge of a piece of wood, the joint allows for a larger gluing surface, resulting in a stronger and more durable bond.
2. Improved Alignment:
Rabbet joints help to improve the alignment of the pieces being joined together. The groove or recess helps to guide the second piece of wood into place, ensuring that the joint is perfectly aligned. This is particularly important when joining larger or heavier pieces of wood.
3. Concealed Joints:
Rabbet joints can be used to create concealed joints, where the joint is hidden from view. This is especially useful for creating seamless and aesthetically appealing woodworking projects, such as cabinets or furniture.
To create rabbet joints, a table saw is commonly used. The table saw allows for precise and accurate cuts, resulting in clean and tight-fitting joints. However, it is important to follow safety precautions and use appropriate tools and techniques when working with a table saw.
| Advantages of Rabbet Joints | Disadvantages of Rabbet Joints |
|---|---|
| Rabbet joints provide increased strength | The joint may weaken the overall structure of the wood if not properly executed |
| Rabbet joints improve alignment | The joint may require more woodworking skills and precision |
| Rabbet joints allow for concealed joints | Create a visible groove or recess which may not be desired for some projects |
In conclusion, rabbet joints are an important technique in woodworking that provide increased strength, improved alignment, and the option for concealed joints. They can be created using a table saw and offer several advantages. However, it is crucial to carefully plan and execute rabbet joints to ensure the best results in woodworking projects.
Tools and materials needed for cutting Rabbet Joints with a Table Saw
When it comes to cutting rabbet joints with a table saw, there are several tools and materials that you will need to have on hand. These include:
The Table Saw:
The most important tool for cutting rabbet joints is, of course, the table saw itself. Make sure you have a good quality table saw that is capable of making precise cuts and has a sturdy fence for accuracy.
Dado Blade:
A dado blade is a specialized type of cutting blade that is perfect for making rabbet joints. It is a set of two or more blades that can be stacked together to remove a specific width of material. This is essential for creating the perfect rabbet joint.
Push Stick:
Safety is paramount when using a table saw, and a push stick is the perfect tool for keeping your hands safe while cutting rabbet joints. A push stick allows you to safely guide the workpiece through the saw without putting your fingers in harm’s way.
Measuring Tools:
Accurate measurements are crucial when cutting rabbet joints. Make sure you have a reliable tape measure or a combination square to ensure precise cuts and to mark the correct positions on your workpiece.
Clamps:
Clamps are necessary for holding your workpiece securely in place while you make the cuts. They help ensure that your workpiece doesn’t move or slip during the cutting process, resulting in clean and accurate rabbet joints.
By having these tools and materials ready, you will be fully prepared to cut rabbet joints with your table saw. Remember to always prioritize safety and take your time to ensure accurate and clean cuts.
Choosing the right type of Table Saw for cutting Rabbet Joints
When it comes to cutting rabbet joints with a table saw, having the right type of saw can make a significant difference in the quality of your work. There are several factors to consider when choosing a table saw for this specific task.
1. Size and Power
The size and power of the table saw play a crucial role in its ability to make clean and precise cuts for rabbet joints. Look for a table saw that has sufficient cutting capacity and motor power to handle the thickness of the materials you will be working with. This will ensure that you can achieve accurate and consistent results.
2. Fence System
The fence system is another important feature to consider when selecting a table saw for cutting rabbet joints. A high-quality fence system will provide stability and accuracy, which are essential for achieving tight and seamless rabbet joints. Look for a table saw with a solid and reliable fence system that can be easily adjusted and locked in place.
3. Blade Adjustments
Being able to make precise blade adjustments is crucial when cutting rabbet joints. Look for a table saw that offers easy-to-use and accurate adjustments for blade height and angle. This will allow you to achieve the precise dimensions and angles required for creating well-fitted rabbet joints.
4. Safety Features
Always prioritize safety when choosing a table saw for any woodworking task, including cutting rabbet joints. Look for a table saw that comes with essential safety features such as blade guards, riving knives, and anti-kickback pawls. These features will help minimize the risks of accidents and injuries during operation.
5. Durability and Reliability
Investing in a durable and reliable table saw is essential for long-term use and consistent results. Look for a table saw that is made from high-quality materials and has a well-built construction. Reading customer reviews and researching brands known for producing sturdy and dependable table saws can help you make an informed decision.
By considering these factors and doing thorough research, you can choose the right type of table saw that will meet your specific needs for cutting rabbet joints. Remember, a high-quality table saw will not only ensure precise and clean cuts but also make your woodworking projects more enjoyable and efficient.
Other tools and materials required for cutting Rabbet Joints
In addition to a table saw, there are a few other tools and materials you will need to cut rabbet joints:

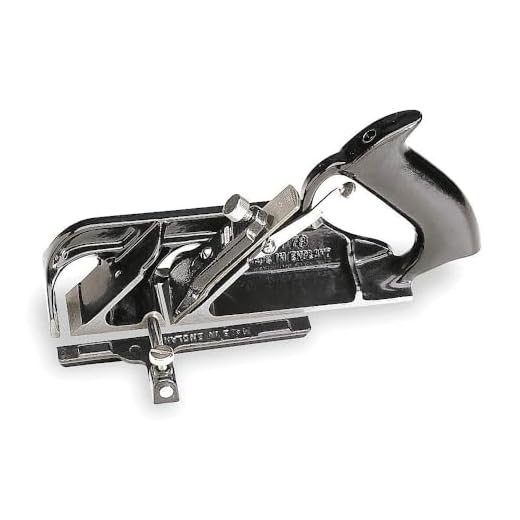

- Rabbet plane: This specialized hand plane is designed specifically for cutting rabbets and will help you achieve clean and precise cuts.
- Measuring tools: You will need a tape measure or ruler to ensure accurate measurements for your rabbet joints.
- Marking tools: Pencils or marking knives can be used to mark the areas that need to be cut or removed.
- Clamps: Clamps are essential for securing your workpiece to the table saw fence or workbench, ensuring safety and precision during the cutting process.
- Safety equipment: Always wear safety goggles and ear protection when operating power tools like a table saw.
- Dust collection system: To keep your work area clean and safe, it’s recommended to use a dust collection system or a shop vacuum to collect sawdust and debris.
By having these tools and materials on hand, you can ensure that you have everything you need to successfully cut rabbet joints with a table saw.
Steps for cutting Rabbet Joints with a Table Saw
Interested in creating strong and precise joints for your woodworking projects? Rabbet joints are a great choice, and you can easily cut them using a table saw. Follow these steps to achieve accurate and clean rabbet joints:
Step 1: Set up your table saw
Ensure your table saw is properly set up and in good working condition. Make sure the blade is sharp and adjusted to the correct height. Set the fence to the desired width of the rabbet cut. Take safety precautions by wearing appropriate eye and ear protection.
Step 2: Mark your cuts
Measure and mark the depth and length of the rabbet joint on the workpiece. Use a pencil or marking knife to create clear and accurate lines to guide your cuts.
Step 3: Adjust the blade height
Lower the blade height to match the desired depth of the rabbet joint. Make sure to adjust the blade according to the marked lines on the workpiece, ensuring the correct amount of material will be removed.
Step 4: Position the workpiece
Place the workpiece on the table with the marked lines facing the fence. Adjust the fence so that the blade will cut according to the desired width of the rabbet joint. Make sure the workpiece is firmly and securely held in place.
Step 5: Make the first pass
Turn on the table saw and guide the workpiece towards the blade, keeping your hands a safe distance away. Keep the workpiece flat against the table and the edge against the fence. Make a first pass, cutting along the marked lines to create the initial rabbet cut.
Step 6: Make additional passes, if necessary
If the rabbet joint requires a wider cut, adjust the fence and make additional passes until you reach the desired width. Take your time and make sure each pass is accurate and controlled.
Step 7: Clean up the corners
After making the rabbet cuts, you may notice rounded corners. To clean up the corners and achieve sharp, square edges, use a chisel or router plane. Carefully remove any remaining material until the corners are clean and precise.
Step 8: Test the fit
Once you have completed the rabbet joint, test the fit by joining the pieces together. The rabbet joint should fit snugly and securely without any gaps. Make any necessary adjustments to improve the fit if needed.
Following these steps will help you achieve accurate and clean rabbet joints using a table saw. Practice proper safety measures and take your time to ensure precise cuts, and you’ll be on your way to creating strong and professional-looking woodworking projects!
Preparing the workpiece and setting up the Table Saw
Before you can start cutting rabbet joints with a table saw, you need to properly prepare the workpiece and set up the table saw. Follow these steps to ensure a successful and safe cutting process:
1. Measure and mark your workpiece: Begin by measuring the length and width of your workpiece, and mark the dimensions with a pencil. This will help you determine where to make your cuts.
2. Choose the appropriate blade: Select a blade suitable for making rabbet joints. A dado blade or a standard blade with a rabbet dado set can be used. Ensure that the blade is sharp and in good condition to avoid splintering or rough edges.
3. Adjust the blade height: Set the blade height to the thickness of the workpiece to achieve the desired depth of the rabbet joint. Use a ruler or a caliper to measure the thickness accurately.
4. Set the rip fence: Position the rip fence parallel to the blade, allowing for the desired width of the rabbet joint. Ensure that the rip fence is securely tightened to prevent movement during the cutting process.
5. Install a rabbet fence or use a dado insert: A rabbet fence or a dado insert helps provide stability and prevents tear-out while cutting the rabbet joint. Attach the rabbet fence or insert according to the manufacturer’s instructions.
6. Adjust the miter gauge: If you are making angled rabbet joints, adjust the miter gauge to the desired angle. This will guide the workpiece accurately along the blade during the cutting process.
7. Check safety settings: Ensure that all safety features, such as blade guards and anti-kickback pawls, are correctly installed and functioning properly. This will help minimize the risk of accidents during the cutting process.
| Tip: | Always wear appropriate safety gear, including safety goggles and hearing protection, when operating a table saw. |
Once you have completed these steps, you are ready to start cutting rabbet joints with your table saw. Remember to take your time, maintain a steady pace, and always prioritize safety.
Cutting the shoulder and cheek of the Rabbet Joint
When making a rabbet joint with a table saw, it is important to first establish the shoulder and cheek cuts. These cuts create the depth and width of the rabbet joint, allowing for a snug fit between two pieces of wood.
To start, you will need to set the table saw blade height to the desired depth of the rabbet. Use a tape measure or a depth gauge to accurately measure and set the blade height. Once the blade is set, make sure to turn off the table saw and unplug it for safety.
Next, mark the width of the rabbet joint on the edge of the workpiece. This will help guide your cuts and ensure precise measurements. Use a marking knife or a pencil to create a clear and visible line across the length of the edge.
Now it’s time to cut the shoulder of the rabbet joint. Place the workpiece against the table saw fence, ensuring that the marked line aligns with the outside edge of the blade. Hold the workpiece firmly with your non-dominant hand and turn on the table saw. Slowly push the workpiece into the blade, keeping it firmly against the fence to create a straight and even shoulder cut. Take your time and proceed with caution to avoid any accidents.
After cutting the shoulder, you can move on to cutting the cheek of the rabbet joint. This cut will remove material from the inside of the workpiece, creating the desired depth of the rabbet joint. To do this, adjust the table saw fence so that the blade aligns with the width mark on the edge of the workpiece. Once the fence is properly positioned, turn on the table saw and repeat the same process as before, carefully pushing the workpiece through the blade while keeping it against the fence. Again, take your time and exercise caution to ensure a clean and precise cut.
Once both the shoulder and cheek cuts are made, you can test the fit of the rabbet joint by joining the two pieces of wood together. If the fit is too loose, you can make additional passes on the table saw to adjust the depth and width of the joint. If the fit is too tight, you can use a chisel or a shoulder plane to carefully remove any excess material until the pieces fit snugly together.
Remember to always prioritize safety when using a table saw. Wear appropriate protective gear, such as safety glasses and hearing protection, and be mindful of your body position and hand placement while operating the saw. With practice and attention to detail, you can successfully cut rabbet joints with a table saw to create strong and durable woodworking joints.
Questions and answers
What is a rabbet joint?
A rabbet joint is a type of joint used in woodworking to join two pieces of wood together at a right angle.
What tools are needed to cut rabbet joints?
To cut rabbet joints, you will need a table saw, a miter gauge, a dado blade set, and safety equipment such as goggles and gloves.
Can rabbet joints be cut with a regular saw?
Yes, rabbet joints can be cut with a regular saw, but a table saw with a dado blade set is the most efficient tool for cutting rabbet joints.
What are the advantages of using rabbet joints?
Rabbet joints provide a strong and durable connection between the two pieces of wood. They also allow for a flush surface when joining two pieces at a right angle.
Are rabbet joints difficult to cut?
Cutting rabbet joints can be a bit challenging for beginners, but with the right tools and technique, it can be done successfully. It may require some practice and patience to achieve precise and clean cuts.
