How To Aline A Titan Table Saw
If you own a Titan table saw, you know how important it is to keep it properly aligned for accurate and safe cutting. Proper alignment ensures that the blade is parallel to the miter gauge slots and the fence, allowing for precise cuts every time. In this article, we will guide you through the step-by-step process of aligning your Titan table saw, so you can get the most out of your woodworking projects.
Step 1: Checking the Blade Alignment

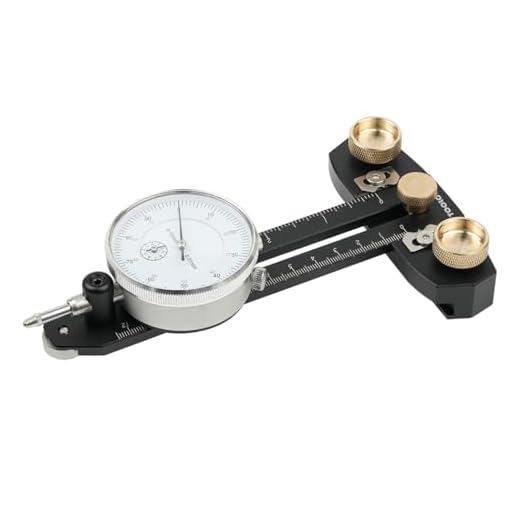

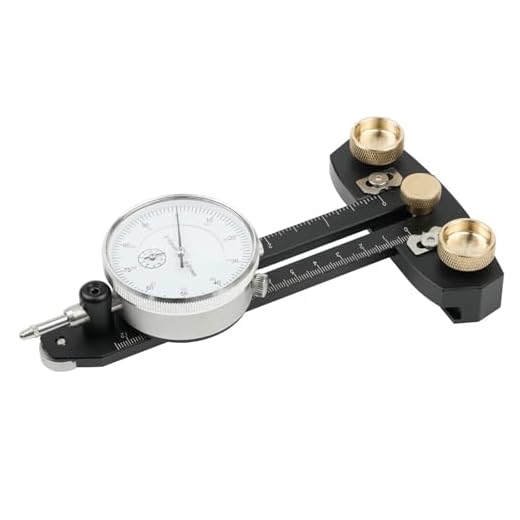

The first step in aligning your Titan table saw is to check the alignment of the blade. Start by unplugging the saw and removing the blade guard. Use a combination square or a specially designed alignment tool to check if the blade is parallel to the miter gauge slots. If the blade is not aligned, proceed to the next step.
Step 2: Adjusting the Blade Alignment
To adjust the blade alignment, locate the adjustment screws or bolts on the underside of the table saw. These screws or bolts allow you to adjust the angle of the blade. Use a wrench or the provided tool to make small adjustments to the screws or bolts until the blade is parallel to the miter gauge slots. Make sure to tighten the screws or bolts securely after each adjustment.
Step 3: Checking the Fence Alignment
Once the blade is properly aligned, it’s time to check the alignment of the fence. The fence should be parallel to the blade to ensure accurate cuts. Use a tape measure or a straight edge to measure the distance between the front and rear of the fence and the blade. If the measurements are not equal, follow the next step to adjust the fence alignment.
Step 4: Adjusting the Fence Alignment
To adjust the fence alignment, locate the fence adjustment screws or knobs on the front or rear of the table saw. Loosen these screws or knobs and gently tap the fence into the desired position until it is parallel to the blade. Use a tape measure or a straight edge to confirm the alignment before tightening the screws or knobs securely.
By following these steps, you can easily align your Titan table saw for precise and safe woodworking. Remember to regularly check and adjust the alignment to ensure optimal performance. Happy cutting!
Essential Steps for Aligning Your Titan Table Saw
Aligning your Titan table saw is an important step to ensure accurate and safe cuts. Proper alignment will improve the performance of your saw and reduce the risk of kickback or other accidents. Follow these essential steps to align your Titan table saw:
1. Check the Blade and Arbor
Start by checking the blade for any damage or signs of wear. Replace the blade if necessary. Next, inspect the arbor and make sure it is clean and free from any debris or buildup. Clean the arbor with a brush or compressed air if needed.
2. Adjust the Fence
The next step is to adjust the fence for parallel alignment to the blade. To do this, measure the distance between the fence and the blade at the front and back ends. The measurements should be the same. If they are not, adjust the fence until the measurements are equal.
3. Align the Miter Gauge
The miter gauge should also be aligned with the blade to ensure accurate crosscuts. Place the miter gauge in the table slot and adjust it so that it is parallel to the blade. Use a square to check the alignment and make any necessary adjustments.
4. Check the Blade Angle
To ensure that the blade is cutting at the correct angle, use a combination square to check the alignment. Place the square against the blade and adjust the angle until it is square with the table surface. Repeat this process for different angles as needed.
5. Test and Fine-Tune
Once you have completed the initial alignment, it’s important to test the saw by making some test cuts. Check the accuracy of your cuts and make any necessary fine-tuning adjustments. Repeat the testing and adjustment process until you are satisfied with the results.
| Note: | It is recommended to consult the user manual or contact the manufacturer for specific instructions on aligning your Titan table saw. They may have additional steps or recommendations based on the model you own. |
By following these essential steps and taking the time to align your Titan table saw properly, you can ensure precise and safe cuts every time. Regular maintenance and alignment checks will also prolong the lifespan of your saw and keep it in optimal working condition.
Gather the Necessary Tools
Before you begin aligning your Titan table saw, you’ll need to gather a few essential tools. These tools will make the alignment process much easier and ensure that you achieve accurate results. Here are the tools you’ll need:
- Adjustable wrench
- Hex key set
- Straight edge or ruler
- Tape measure
- Feeler gauges
- Level
The adjustable wrench will be used to loosen and tighten nuts and bolts during the alignment process. The hex key set will come in handy for adjusting specific components of the table saw, such as the blade tilt mechanism.
A straight edge or ruler is necessary to check the alignment of the table saw’s tabletop and fence. This tool will help you determine if any adjustments are needed to achieve a perfectly straight cutting surface.
A tape measure is essential for taking accurate measurements during the alignment process. This will allow you to precisely adjust the various components of the table saw.

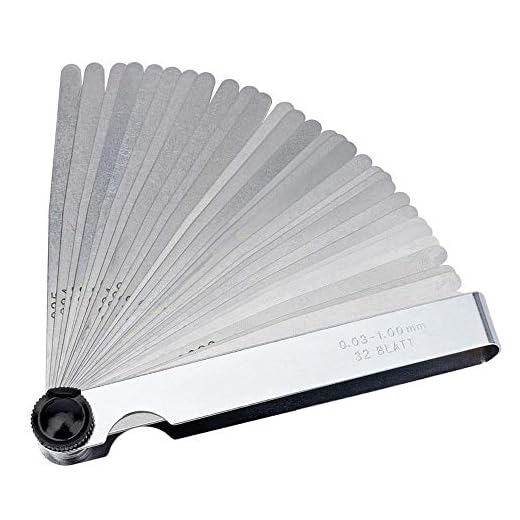

Feeler gauges are used to measure the gap between different parts of the table saw, such as the blade and the miter gauge slots. These measurements will help you determine if the table saw is properly aligned.
Finally, a level is required to check the overall levelness of the table saw. This is important for ensuring that your cuts are accurate and consistent.
By gathering these tools before you begin the alignment process, you’ll be well-prepared to tackle the task and achieve accurate results with your Titan table saw.
Check the Initial Alignment
Before beginning any adjustments, it is important to ensure that your Titan table saw is initially aligned properly. This initial alignment will serve as a reference point for any future adjustments you may need to make.
Here are the steps to check the initial alignment of your Titan table saw:
- Start by unplugging the saw and ensuring that it is turned off.
- Place a straight piece of wood or a reliable straight edge against the fence of the saw.
- With the wood or straight edge against the fence, check if it aligns perfectly parallel to the blade.
- If the wood or straight edge is not parallel to the blade, you will need to make adjustments.
To make adjustments to the alignment, please refer to the user manual provided with your Titan table saw. The manual will provide detailed instructions on how to adjust the various components of the saw to achieve proper alignment.
It is important to check the initial alignment of your Titan table saw regularly, as vibrations and general wear and tear can cause the alignment to shift over time. By ensuring that your saw is properly aligned, you can improve the accuracy and safety of your cuts.
Adjust and Fine-tune the Table Saw Alignment
Properly aligning your Titan table saw is crucial for achieving accurate and clean cuts. Here are some steps to adjust and fine-tune the alignment of your table saw:
1. Check the Blade Alignment
Start by checking the alignment of the saw blade. Make sure it is parallel to the miter gauge slots. To do this, loosen the arbor nut and use a combination square or a specialized tool to measure the distance between the blade and the miter gauge slot at the front and rear of the saw. Adjust the blade alignment by turning the trunnion bolts on the back of the saw until the blade is parallel to the miter gauge slots.
2. Align the Fence
Next, align the fence with the saw blade. Place a straight edge or a piece of hardwood against the fence and adjust its position until it is parallel to the saw blade. Lock down the fence in this aligned position. Repeat this step at both the front and rear of the fence to ensure consistent alignment throughout its length.
3. Check the Miter Gauge Alignment
Ensure that your miter gauge is also aligned properly. Place it in the miter gauge slot and adjust it until it is perpendicular to the saw blade. You can use a square or a dedicated miter gauge alignment tool for this. Tighten the miter gauge in place once it is properly aligned.
4. Check the Blade Angle
Verify that the blade is angled correctly if you plan on making bevel cuts. Adjust the bevel angle by loosening the bevel lock and using a bevel gauge or a digital angle finder to set the desired angle. Once set, tighten the bevel lock to secure the blade at the desired angle.
These steps should help you to align and fine-tune your Titan table saw for accurate and precise cuts. Remember to double-check the alignment periodically to ensure optimal performance.
Questions and answers
What tools do I need to align a Titan table saw?
You will need a wrench, a square, a measuring tape, and a screwdriver.
How often should I align my Titan table saw?
It is recommended to align your Titan table saw at least once a year, or whenever you notice any issues with the accuracy of the cuts.
