Understanding the Mechanism behind Self Centering Drill Bits

Self centering drill bits are a type of drill bit that are designed to make drilling holes easier and more precise. These drill bits have a unique mechanism that allows them to automatically center themselves in the material being drilled, reducing the risk of the bit slipping or wandering off course. This makes them particularly useful for tasks that require accurate hole placement, such as woodworking and metalworking.

The mechanism behind self centering drill bits is quite simple yet effective. These bits have a sharp central point that acts as a guide, ensuring that the bit stays centered as it penetrates the material. Surrounding the point are two or more sharp cutting edges that remove the material and create the hole. The cutting edges are set at a slight angle, which helps to push the bit towards the center, further enhancing the self-centering ability of the bit.

When using a self centering drill bit, it is important to apply steady and even pressure to ensure that the bit remains centered throughout the drilling process. The bit should be held perpendicular to the surface, allowing the cutting edges to remove the material in a controlled manner. The self centering mechanism of these bits greatly reduces the risk of the bit drifting off course, but it is still important to exercise caution and take appropriate safety precautions when drilling.

Overall, self centering drill bits are a valuable tool for any DIY enthusiast or professional looking to make precise holes in a variety of materials. They offer improved accuracy and ease of use compared to traditional drill bits, making them a popular choice among craftsmen and hobbyists alike.

By understanding the mechanism behind self centering drill bits and using them correctly, you can achieve professional-quality results in your drilling projects.

What are Self Centering Drill Bits and How Do They Work?

A self centering drill bit is a type of drill bit that has a mechanism designed to assist in accurately positioning the drill bit at the desired drilling location. Traditional drill bits do not have this feature and require manual alignment before drilling.

The mechanism of a self centering drill bit generally relies on a spring-loaded pilot tip. This tip, usually made of hardened steel, protrudes slightly from the main body of the drill bit. When the drill bit is pressed against the material to be drilled, the pilot tip makes contact first, allowing the user to apply pressure and guide the bit into the correct position.

Once the pilot tip is engaged, the user can exert pressure to start the drilling process. As the drill bit rotates, the pilot tip retracts into the body, allowing the main cutting edges of the bit to make contact with the material. This ensures that the drilling action is centered and accurate.

Self centering drill bits are particularly useful for drilling holes in materials that require precise alignment, such as wood or metal. They eliminate the need for manual centering and reduce the likelihood of errors, such as drill bit slippage or off-center drilling.

These drill bits are available in various sizes and can be used with both handheld drills and drill presses. They are commonly used in woodworking, cabinetry, and metalworking applications where precision is crucial.

Overall, self centering drill bits are a valuable tool for anyone who needs to drill accurate and centered holes. Their mechanism simplifies the drilling process and ensures precise results, saving time and effort.

The Importance of Accurate Drilling

Accurate drilling is a critical factor in many industrial and DIY applications. Whether you are drilling holes for screws, creating dowel joints, or cutting precise openings for electrical components, the quality of your drilling directly impacts the overall outcome of your project. Here are a few reasons why accurate drilling is important:

1. Precision and Professionalism

Accurate drilling ensures that your work is precise and professional-looking. Whether you are a professional contractor or a DIY enthusiast, the quality of your drilling reflects your skill level and attention to detail. A clean and precise hole gives your project a polished and finished appearance.

2. Proper Alignment

Accurate drilling enables proper alignment of components, such as hinges, brackets, or electrical fixtures. Misaligned holes can result in poorly functioning or unstable structures. For example, in woodworking, accurate drilling is essential for creating joints that fit snugly together, providing strength and stability to the finished product.

3. Time and Cost Savings

Accurate drilling can save you time and money by reducing the need for rework or repairs. When holes are accurately drilled, the chances of damaging materials, such as cracking or splintering wood or causing cracks in concrete, are minimized. This means less material wastage and fewer additional expenses for repairs or replacements.

4. Enhanced Safety

Accurate drilling contributes to the overall safety of the project. When holes are drilled precisely, it reduces the risk of accidents and injuries caused by loose or improperly fitted components. It ensures that screws, bolts, or fasteners are securely held in place, preventing them from coming loose or causing structural failures.

5. Improved Performance

Accurate drilling improves the overall performance of a project. For example, in electrical installations, precise drilling allows for proper alignment of conduits, cables, and wires, ensuring efficient flow of electricity and minimizing the risk of short circuits or other electrical issues.

See also  Best drill bits for warhammer models

To achieve accurate drilling, using high-quality drill bits and tools, along with proper technique and attention to detail, is essential. Investing in self-centering drill bits, which automatically center themselves in the hole and reduce the risk of wandering or drifting during drilling, can significantly improve the accuracy of your drilling.

In conclusion, accurate drilling is vital for achieving precise and professional results, ensuring proper alignment, saving time and costs, enhancing safety, and improving project performance. By prioritizing accurate drilling, you can elevate the quality of your work and achieve successful project outcomes.

Understanding the Basics of Self Centering Drill Bits

Overview

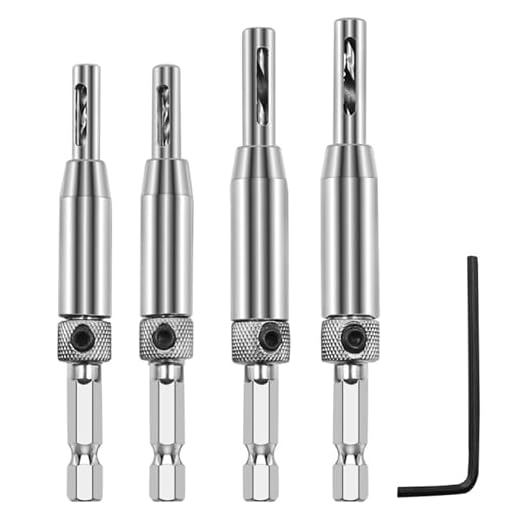

In the world of drilling, accuracy is key. Self centering drill bits, also known as hinge drill bits or Vix bits, are designed to ensure precise and centered holes. These drill bits feature a unique design that allows for easy and accurate drilling, making them a popular choice among DIY enthusiasts and professionals alike.

Construction

A self centering drill bit typically consists of a drill bit with a tapered guide tip and spring-loaded centering pin. The guide tip acts as a pilot, helping to guide the drill bit into the desired position. The centering pin provides additional stability and helps to keep the drill bit centered during drilling.

How It Works

When using a self centering drill bit, the user simply places the guide tip on the desired location and applies light pressure. As the drill bit is rotating, the guide tip helps to keep it on track, preventing it from wandering or slipping off course. The centering pin ensures that the drill bit remains centered, resulting in a precise and accurately positioned hole.

Benefits

  • Accuracy: The primary benefit of self centering drill bits is their ability to create accurate and centered holes. This is particularly important when drilling holes for hinges or other precise fittings.
  • Ease of Use: Self centering drill bits are easy to use, even for beginners. The guide tip and centering pin help to eliminate the need for guesswork and ensure consistent results.
  • Versatility: Self centering drill bits can be used on various materials, including wood, metal, and plastic. This makes them a versatile tool for a wide range of projects.

Limitations

While self centering drill bits offer many advantages, they do have some limitations. These include:

  • Size Limitations: Self centering drill bits are typically available in a limited range of sizes, which may restrict their use for specific applications.
  • Depth Limitations: Some self centering drill bits may not be suitable for drilling deep holes, as the centering pin may not be long enough to reach the desired depth.

Conclusion

Self centering drill bits are a valuable tool for achieving precise and centered holes. Their unique design and features make them a popular choice among DIY enthusiasts and professionals. While they may have some limitations, their accuracy, ease of use, and versatility make them a worthwhile investment for any drilling project.

The Innovative Design of Self Centering Drill Bits

The Innovative Design of Self Centering Drill Bits

Self centering drill bits are a type of drill bit that has been specially designed to make it easier to drill accurate and precise holes. These drill bits are commonly used in woodworking, metalworking, and other applications where precision is critical. The innovative design of self centering drill bits ensures that the drill bit stays centered and does not wander off course during drilling.

Features of Self Centering Drill Bits

  • Self centering tip: One of the key features of self centering drill bits is their self centering tip. This tip is designed to automatically align the drill bit with the center of the hole, ensuring that the hole is drilled accurately and without any deviation.
  • Adjustable depth stop: Another important feature of self centering drill bits is their adjustable depth stop. This allows the user to control the depth of the hole and ensure consistent drilling depth across multiple holes.

How Self Centering Drill Bits Work

How Self Centering Drill Bits Work

Self centering drill bits achieve their unique functionality through a combination of design elements. The self centering tip is usually made up of two or more blades that are angled inwards. When the drill bit is placed on the material and pressure is applied, the blades are pushed back, allowing the drill bit to move forward. As the tip enters the material, the blades spring back into their original position, causing the drill bit to center itself in the hole. This eliminates the need for the user to constantly adjust the position of the drill bit to keep it centered.

Benefits of Self Centering Drill Bits

The innovative design of self centering drill bits offers several benefits:

  1. Precision: Self centering drill bits ensure precise and accurate drilling by eliminating the risk of the drill bit wandering off course.
  2. Time-saving: With self centering drill bits, users can drill holes quickly and efficiently, without the need for frequent adjustments.
  3. Reduced chance of damage: The self centering design reduces the chance of the drill bit slipping and causing damage to the workpiece or the drill itself.
See also  Best back tuck drills

Conclusion

The innovative design of self centering drill bits has revolutionized the drilling process, making it easier than ever to achieve precise and accurate holes. With their self centering tip and adjustable depth stop, these drill bits offer improved efficiency, precision, and reduced chance of damage. Whether you’re a professional or a DIY enthusiast, self centering drill bits are a valuable tool to have in your workshop.

How Self Centering Drill Bits Improve Accuracy

Self centering drill bits are a type of drill bit that are designed to improve accuracy when drilling holes. They work by ensuring that the hole is drilled in the exact center of the desired location, which helps to eliminate mistakes and inaccuracies that can occur with traditional drilling methods.

1. Improved Alignment

One of the main ways that self centering drill bits improve accuracy is by providing improved alignment. These drill bits feature a specialized tip that is designed to automatically center itself within the desired drilling location. This helps to ensure that the hole is drilled precisely in the center, which is especially important when working with delicate materials or when needing to align multiple holes for a specific purpose.

2. Elimination of Wandering

Traditional drill bits can sometimes “wander” or deviate from the desired drilling location, especially when drilling into hard materials or when multiple holes need to be aligned. This can result in misplaced or uneven holes, which can be frustrating and time-consuming to correct. Self centering drill bits are specifically designed to eliminate wandering by providing a secure and stable drilling path. This ensures that the holes are consistent and accurately aligned, improving overall precision.

3. Reduced Risk of Damage

When using traditional drill bits, there is always a risk of damaging the material or workpiece if the hole is not drilled accurately. This can result in cracks, splintering, or even complete failure of the project. Self centering drill bits greatly reduce this risk by ensuring that the hole is drilled precisely in the intended location. By eliminating the need for re-drilling or making corrections, self centering drill bits help to protect the integrity of the material and minimize the risk of damage.

4. Time and Cost Savings

Another advantage of self centering drill bits is the time and cost savings they offer. By improving accuracy, these drill bits eliminate the need for time-consuming corrections and rework. This can greatly reduce project timelines and save costs associated with wasted materials. Additionally, the improved precision provided by self centering drill bits can result in higher quality finished products, increasing customer satisfaction and potentially opening up new business opportunities.

Summary of Benefits:
Benefits Description
Improved Alignment Ensures drilling in exact center of desired location
Elimination of Wandering Prevents deviation from the desired drilling location
Reduced Risk of Damage Minimizes the risk of damaging the material or workpiece
Time and Cost Savings Reduces project timelines and saves costs associated with rework

Advantages of Using Self Centering Drill Bits

  • Improved Precision: Self centering drill bits are designed to automatically locate and align themselves at the center of a material, ensuring precise drilling. This eliminates the need for manual centering and reduces the risk of errors or inaccuracies.
  • Time and Effort Saving: The self centering mechanism of these drill bits allows for quick and effortless drilling. As the bits automatically find the center, there is no need to pre-drill or use additional tools for alignment, saving both time and effort.
  • Reduced Chance of Slippage: Self centering drill bits securely grip the material, reducing the chance of slippage during drilling. This provides better control and stability, preventing damage to the material or the bit and ensuring a clean and precise hole.
  • Versatility: Self centering drill bits are suitable for a wide range of materials, including wood, metal, plastic, and more. This versatility makes them a valuable tool for various woodworking, crafting, and DIY projects.
  • Prevention of Drill Bit Wander: When using regular drill bits, there is a risk of the bit wandering off the desired drilling spot, especially on smooth or slippery materials. Self centering drill bits eliminate this problem by automatically guiding the bit to the center and maintaining stability throughout the drilling process.
  • Professional Results: The precision and ease of use provided by self centering drill bits result in professional-looking, clean, and accurately positioned holes. Whether you are a professional or a hobbyist, these bits can help you achieve high-quality results.
  • Durability: Self centering drill bits are made from durable materials that can withstand frequent use and resist wear and tear. This ensures a longer lifespan for the bits, saving you money in the long run.
  • Wide Range of Sizes: Self centering drill bits are available in various sizes to accommodate different hole diameters. This allows for greater flexibility and precision in drilling tasks.

Common Applications for Self Centering Drill Bits

Common Applications for Self Centering Drill Bits

Self centering drill bits are versatile tools that can be used in a variety of applications. Here are some common applications where self centering drill bits are commonly used:

Woodworking

  • Installing hinges
  • Joining wood pieces
  • Creating dowel joints
  • Drilling pocket holes
  • Boring holes for screws
See also  Best hitting drills for power

Metalworking

  • Drilling holes in metal sheets
  • Creating holes for metal fasteners
  • Preparing holes for rivets
  • Drilling holes for bolts and screws

Plastic fabrication

  • Drilling holes in plastic materials
  • Creating holes for plastic fasteners
  • Preparing holes for plastic rivets
  • Drilling precision holes for assembling plastic components

Automotive repair and maintenance

  • Drilling holes for automotive fasteners
  • Creating holes for attaching accessories
  • Repairing body panels
  • Preparing holes for welding

Electronics assembly

  • Drilling holes for electrical components
  • Creating holes for mounting PCBs
  • Preparing holes for switches and buttons
  • Installing connectors

In addition to these applications, self centering drill bits can also be used in various DIY projects, crafts, and other general drilling tasks.

Tips for Proper Use and Maintenance of Self Centering Drill Bits

1. Use the Right Size Drill Bit

When using self centering drill bits, it is important to use the right size for the job. Using a drill bit that is too large or too small can result in inaccurate holes and may damage the bit.

2. Apply Steady Pressure

Apply steady pressure when drilling with a self centering drill bit. This will help the bit to self-center properly and ensure accurate drilling. Avoid applying too much force as it can cause the bit to wander.

3. Avoid Overheating

Self centering drill bits can heat up during use, especially when drilling through tough materials. To prevent overheating, take breaks during prolonged drilling sessions and allow the bit to cool down. This will help prolong the lifespan of the drill bit.

4. Clean the Drill Bit Regularly

Regularly clean the drill bit to remove any debris or buildup that may affect its performance. Use a brush or compressed air to remove dust and particles. This will help maintain the sharpness and efficiency of the bit.

5. Store Properly

Properly store self centering drill bits when not in use to prevent damage. Use a designated case or container to keep the bits organized and protect them from moisture or other elements that can cause rust or deterioration.

6. Replace Worn or Damaged Bits

Inspect self centering drill bits regularly for wear or damage. If a bit is dull, chipped, or otherwise compromised, replace it with a new one. Using a worn or damaged bit can lead to poor drilling performance and potential accidents.

7. Follow Manufacturer’s Instructions

Always follow the manufacturer’s instructions for proper use, maintenance, and safety precautions when using self centering drill bits. This will help ensure optimal performance and longevity of the drill bits.

8. Practice Proper Safety Measures

When using self centering drill bits, always wear appropriate safety equipment such as safety goggles and gloves. Keep fingers and loose clothing away from the drilling area to prevent accidents. Follow all safety guidelines and regulations.

9. Seek Professional Assistance if Needed

If you are unsure about using self centering drill bits or need assistance with a specific project, it is always best to seek professional help. They can provide guidance, advice, and ensure that the job is done accurately and safely.

FAQ:

What are self-centering drill bits?

Self-centering drill bits are a type of drill bit that have a mechanism built into their design to ensure that the hole they create is perfectly centered. This is achieved through a combination of a specialized drill tip and a spring-loaded collar.

How do self-centering drill bits work?

Self-centering drill bits work by using a spring-loaded collar to guide the drill bit into the center of the hole. The collar ensures that the drill bit remains in position, even if there is some initial movement or misalignment.

What are the advantages of using self-centering drill bits?

There are several advantages to using self-centering drill bits. First and foremost, they help to ensure that the holes you drill are perfectly centered, which is important for precise and accurate drilling. Additionally, self-centering drill bits are quicker and easier to use than traditional drill bits, as they eliminate the need for additional alignment tools.

Are self-centering drill bits suitable for all drilling tasks?

Self-centering drill bits are suitable for many drilling tasks, but they may not be ideal for every situation. They are best suited for tasks that require precise drilling, such as woodworking and metalworking. However, for larger holes or drilling tasks that don’t require high accuracy, traditional drill bits may be more suitable.

Can self-centering drill bits be used with a hand drill?

Yes, self-centering drill bits can be used with a hand drill. In fact, they can be a great tool for hand drilling tasks, as they help to ensure that the holes are perfectly centered and accurate. However, it’s important to note that the drill bit must be securely held in place by the collar to achieve these benefits.

What are some common uses for self-centering drill bits?

Self-centering drill bits are commonly used in woodworking and metalworking tasks, where precise drilling is necessary. They are often used for drilling holes for hinges, drawer slides, and other hardware. Additionally, they can be used for tasks such as creating pilot holes for screws and drilling dowel holes.
