Understanding the Different Settings on a Drill: A Comprehensive Guide
Drills are an essential tool in any workshop or toolbox. Whether you’re a professional contractor or a DIY enthusiast, knowing how to use a drill effectively can save you time and effort on your projects. One of the key features of a drill is its various settings, which can often be overwhelming for beginners. This comprehensive guide will help you understand the different settings on a drill and how to use them to maximize your drilling experience.
The first and most common setting on a drill is the speed control. This allows you to adjust the speed at which the drill bit rotates, which is important depending on the material you’re drilling into. For softer materials like wood or drywall, a slower speed is generally recommended to prevent the material from splintering or cracking. On the other hand, for harder materials like metal or concrete, a higher speed is needed to effectively penetrate the surface.
Another important setting on a drill is the torque control. Torque refers to the twisting force that the drill applies to the screw or drill bit. By adjusting the torque setting, you can control the power and force with which the drill drives in screws or drills into a material. Lower torque settings are suitable for delicate or lighter applications, while higher torque settings are ideal for heavy-duty tasks that require more power.
In addition to speed and torque settings, many drills also offer additional features such as a hammer function for drilling into masonry or a clutch setting for precise screw driving. The hammer function creates a forward and backward motion in addition to the rotational motion, allowing the drill to pound into the surface. The clutch setting, on the other hand, allows you to set a maximum torque limit, preventing overdriving and stripping screws.
By understanding the different settings on a drill and when to use them, you can ensure that your drilling tasks are efficiently and effectively completed. Whether you’re working on a simple home repair project or a large construction job, having a good grasp of your drill’s settings will make a world of difference in your results. So, take the time to familiarize yourself with your drill’s settings and unlock its full potential.
Types of Drills: Exploring the Options
1. Cordless Drills
Cordless drills are a popular choice for their convenience and portability. These drills are powered by rechargeable batteries, allowing for greater freedom of movement and versatility. They are ideal for projects that require mobility or work in areas without easy access to electrical outlets.
2. Corded Drills
Corded drills, on the other hand, are powered by an electrical cord that needs to be plugged into an outlet. They are generally more powerful than cordless drills and are commonly used for heavy-duty tasks that require a constant power source. However, they do have limitations in terms of mobility.

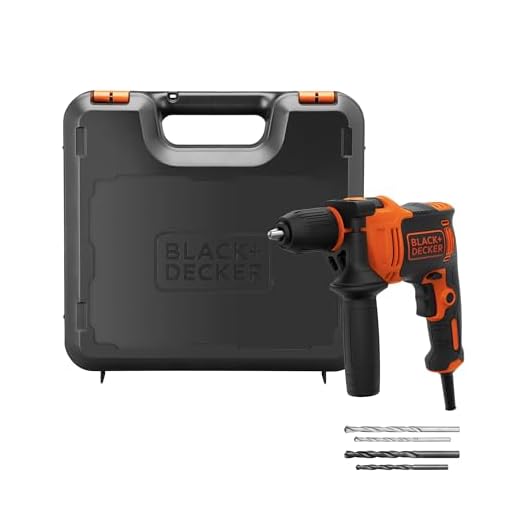

3. Hammer Drills
Hammer drills are designed to generate a pulsating force in addition to the rotational force of a regular drill. This makes them suitable for drilling into harder materials such as concrete or brick. They have a hammering or pounding action that helps to break through tough surfaces, making them a useful tool for construction and masonry work.
4. Impact Drills
Impact drills, also known as impact drivers, are specifically designed for driving screws and fasteners. They provide high torque with rapid rotational impacts that help to drive screws into tough materials. While they may not be as versatile as other types of drills, they excel at driving and fastening tasks, making them a popular choice for carpentry and woodworking projects.
5. Drill Press
A drill press is a stationary drilling machine that is mounted to a workbench or floor. It is designed for precision drilling and is commonly used in metalworking and woodworking applications. Drill presses offer precise depth control and can handle larger drill bits and more demanding drilling tasks.
6. Rotary Drills
Rotary drills, also known as rotary hammer drills or SDS drills, are designed for heavy-duty drilling and hammering. They are commonly used in construction and demolition work, as well as for drilling into hard surfaces such as concrete or stone. Rotary drills feature a specialized chuck system that allows for quick and easy bit changes.
7. Right Angle Drills
Right angle drills, as the name suggests, have a 90-degree angle between the drill body and the drill bit. This design allows for drilling in tight or hard-to-reach spaces where a regular drill may not fit. Right angle drills are useful for tasks such as installing cabinets, working in corners, or drilling in narrow spaces.
8. Magnetic Drills
Magnetic drills are a specialized type of drilling machine that uses a powerful magnet to attach itself to steel and hold it securely in place. These drills are commonly used in industrial applications and are ideal for drilling precise holes in steel beams, pipes, or plates. Magnetic drills offer both stability and precision.
9. Air Drills
Air drills, also known as pneumatic drills, are powered by compressed air and are commonly used in industrial or automotive applications. They are lightweight, durable, and powerful, making them suitable for heavy-duty drilling tasks. However, they do require access to a compressed air source to operate.
10. Specialty Drills
There are also a variety of specialty drills available for specific tasks. These include drills such as drywall drills, tile drills, and pocket hole jigs. Each of these drills is designed to solve a specific problem or address a unique drilling need, making them essential tools for specific applications.
| Type | Features |
|---|---|
| Cordless Drills | Portable, rechargeable batteries |
| Corded Drills | More powerful, constant power source |
| Hammer Drills | Pulsating force for drilling into hard materials |
| Impact Drills | High torque for driving screws and fasteners |
| Drill Press | Stationary, precise depth control |
| Rotary Drills | Heavy-duty drilling and hammering |
| Right Angle Drills | 90-degree angle for tight spaces |
| Magnetic Drills | Powerful magnet for drilling steel |
| Air Drills | Powered by compressed air |
| Specialty Drills | Designed for specific tasks |
Power Options: Corded vs. Cordless Drills
When it comes to choosing a drill, one of the most important factors to consider is the power source. There are two main options available: corded drills and cordless drills. Each type has its own advantages and disadvantages, so it’s important to understand the differences before making a decision.
Corded Drills
Advantages:
- Consistent Power: Corded drills are known for their consistent and reliable power. They are typically more powerful than cordless drills, making them ideal for heavy-duty applications.
- Unlimited Run Time: Since corded drills are powered by electricity, they don’t have a limited run time. As long as you have access to a power outlet, you can continue using the drill without any interruptions.
- Lower Cost: Corded drills are generally less expensive than cordless drills. If you’re on a budget, a corded drill may be a more affordable option.
Disadvantages:
- Limited Mobility: The main drawback of corded drills is their limited mobility. Since they need to be plugged into a power outlet, you can only use them within reach of the cord. This can be restrictive, especially for projects that require moving around or working in tight spaces.
- Noisy Operation: Corded drills tend to be louder than cordless drills due to the power source. This can be an issue if you’re working in a noise-sensitive environment or if you prefer a quieter workspace.
Cordless Drills
Advantages:
- Enhanced Mobility: Cordless drills offer greater mobility compared to corded drills. They are not limited by a power cord, allowing you to work in any location without restrictions.
- Convenience: With a cordless drill, you don’t have to worry about finding a power outlet or dealing with tangled cords. This makes them convenient for both indoor and outdoor use.
- Quieter Operation: Cordless drills are generally quieter than corded drills, making them a preferred choice for those who value a quieter working environment.
Disadvantages:
- Battery Life: The battery life of a cordless drill can be a limitation. Depending on the battery capacity and the type of projects you’re working on, you may need to recharge the battery frequently.
- Less Power: Cordless drills are generally less powerful than corded drills. While they can handle most DIY projects, heavy-duty applications may require the extra power provided by a corded drill.
- Higher Cost: Cordless drills tend to be more expensive than corded drills. The added cost is mainly due to the inclusion of batteries and a charger. However, the price gap between corded and cordless drills has been decreasing in recent years.
In conclusion, the choice between a corded drill and a cordless drill depends on your specific needs and preferences. If you require consistent power and don’t mind the limited mobility, a corded drill may be the better option. On the other hand, if you prioritize mobility and convenience, a cordless drill is a great choice. Consider the advantages and disadvantages of each type before making your decision.
Speed Control: Understanding RPM and Torque
One of the key factors to consider when using a drill is speed control. Speed control allows you to adjust the rotational speed of the drill to match the requirements of the task at hand. The two main components of speed control are revolutions per minute (RPM) and torque.
RPM (Revolutions Per Minute)
RPM refers to the number of complete revolutions a drill bit makes in one minute. This measurement determines how fast the drill bit spins. Higher RPM values indicate faster rotation, while lower RPM values indicate slower rotation. The RPM setting on a drill allows you to match the speed to the material being drilled.
Choosing the appropriate RPM depends on factors such as the material’s hardness and the size of the drill bit. Harder materials typically require lower RPM values, while softer materials can be drilled at higher RPM values. Research or consult the drill’s user manual to determine the recommended RPM settings for different materials.
Torque
Torque refers to the force or power required to rotate an object. In the context of a drill, torque measures the amount of twisting force produced by the drill’s motor. Higher torque values indicate more power, while lower torque values indicate less power.
When drilling, torque plays a crucial role in maintaining the power needed to drive the drill bit through the material. Higher torque settings are ideal for demanding tasks, such as drilling into hard surfaces, while lower torque settings are suitable for lighter tasks, such as driving screws into softer materials.
It’s important to note that the torque setting on a drill may vary depending on the model. Some drills feature adjustable torque settings, allowing you to select the appropriate level of power for the task. Other drills may have a single torque setting, which limits the versatility but simplifies operation.
Choosing the Right Speed and Torque
To effectively use a drill, it’s crucial to select the appropriate speed and torque settings. Failing to do so can result in inefficient drilling or even damage to the drill or workpiece.
Here’s a general guideline for selecting the right speed and torque:
- Identify the material being drilled or worked on.
- Refer to the drill’s user manual or consult reliable resources to determine the recommended RPM settings.
- Based on the material’s hardness and the size of the drill bit, adjust the RPM value accordingly. Harder materials require lower RPM values, and softer materials can be drilled at higher RPM values.
- If the drill has adjustable torque settings, assess the complexity and demands of the task. Select a higher torque setting for challenging tasks and a lower torque setting for lighter tasks.
By understanding RPM and torque and how they contribute to speed control, you can use your drill with precision and efficiency for a wide range of tasks.
Chuck Size: Impact of Chuck Diameter
The chuck size of a drill refers to the diameter of the opening where you insert the drill bit. It is an important specification to consider when choosing a drill as it determines the maximum size of drill bits that can be used with the tool. The chuck size also affects the overall performance and versatility of the drill.
Impact on Versatility
A larger chuck size allows for the use of bigger drill bits, which means you can drill larger holes. This is particularly useful for projects that require drilling through thick materials or creating large openings. On the other hand, a smaller chuck size limits the size of drill bits you can use, making the drill less versatile in terms of hole sizes it can accommodate.
For example, a drill with a 3/8-inch chuck size can accommodate drill bits with a maximum diameter of 3/8 inches. If you need to drill larger holes, you would need a drill with a larger chuck size.
Impact on Power and Performance
The chuck size also affects the power and performance of the drill. A larger chuck size typically indicates a more powerful drill that can handle tougher materials and applications. This is because larger chuck sizes are usually found in drills with higher torque and horsepower ratings.
On the other hand, drills with smaller chuck sizes may be more suitable for lighter tasks and applications. They generally have lower torque and horsepower ratings, making them less powerful but more maneuverable for precise drilling.
Compatibility
It is important to ensure that the drill bits you intend to use are compatible with the chuck size of the drill you choose. Most drills come with a specific chuck size, typically 3/8-inch or 1/2-inch, but there are also drills available with larger or smaller chuck sizes.
Some drills feature keyless chucks that allow for quick and easy bit changes, while others may require a chuck key to tighten or loosen the chuck. Make sure to check the chuck type and size when selecting a drill to ensure compatibility with your desired drill bits.
| Chuck Size | Maximum Drill Bit Diameter |
|---|---|
| 3/8 inch | 3/8 inch |
| 1/2 inch | 1/2 inch |
| 5/8 inch | 5/8 inch |
As you can see from the table above, the chuck size typically corresponds to the maximum drill bit diameter that can be used with the drill. However, it is important to note that some drills may have limitations on the maximum chuck size and drill bit diameter they can accommodate.
Overall, the chuck size of a drill plays a significant role in determining its versatility, power, and compatibility with drill bits. Consider your specific drilling needs and the types of projects you plan to undertake when selecting a drill with the appropriate chuck size.
Forward and Reverse: Mastering Directional Drilling
Directional drilling is a technique used in various industries, such as construction, oil and gas exploration, and mining, to navigate and create holes or wells at specific angles or directions. It allows for greater precision and control, and one of the key aspects of directional drilling is the ability to change the drilling direction from forward to reverse and vice versa.
Forward Drilling
Forward drilling, as the name suggests, involves drilling in the forward direction, with the drill bit rotating in a clockwise motion. This is the most common drilling direction and is used for basic drilling tasks, such as creating vertical or slightly inclined holes.
When drilling forward, the drill bit cuts into the material, such as wood, metal, or concrete, creating a hole as it progresses. The drill’s motor powers the rotation of the bit, providing the necessary torque and speed to cut through the material effectively.
Forward drilling is suitable for various applications, including general home repairs, woodworking, and simple construction projects. It is relatively straightforward and easy to control, making it a popular choice for beginners and DIY enthusiasts.
Reverse Drilling
Reverse drilling, on the other hand, involves drilling in the opposite direction, with the drill bit rotating counterclockwise. This is less commonly used compared to forward drilling, but it has its own set of applications and advantages.
Reverse drilling is primarily used to remove screws, bolts, or other fasteners that are stuck or damaged. By reversing the drill’s rotation, the bit grips the fastener and loosens it, making it easier to remove. This is particularly handy in situations where a stripped screw or bolt needs to be extracted.
In addition to fastener removal, reverse drilling can also be used for specific drilling tasks, such as creating larger holes or enlarging existing ones. It can provide additional control, especially when dealing with delicate materials that may crack or splinter when drilled in the forward direction.
Mastering Directional Drilling
To master directional drilling, it is important to understand the differences between forward and reverse drilling and when to use each technique. By having a clear understanding of which direction to drill and how to switch between forward and reverse, you can successfully accomplish a wide range of drilling tasks with precision and efficiency.
Remember to always follow the manufacturer’s instructions and safety guidelines when operating a drill, as different drills may have specific features or nuances when it comes to directional drilling.
By familiarizing yourself with the different settings and techniques, you can become proficient in directional drilling and tackle various projects with confidence.
Clutch Settings: Adjusting the Torque
The clutch settings on a drill allow you to adjust the torque, or rotational force, applied by the drill bit. This feature is especially useful when working with different materials or when driving screws to prevent overdriving or stripping the fastener.
When adjusting the clutch settings, keep the following in mind:
- Lower settings: Lower clutch settings result in less torque. These settings are ideal for driving screws into delicate materials like drywall or for tasks that require a lighter touch.
- Higher settings: Higher clutch settings provide more torque. These settings are suitable for drilling into harder materials like wood or metal, or for tasks that require more driving force.
- Numbered settings: Many drills have numbered clutch settings, typically ranging from 1 to 20 or higher. These numbered settings correspond to different torque levels. The higher the number, the greater the torque.
When using the clutch settings, it’s important to start with a lower setting and gradually increase the torque until the desired result is achieved. This helps prevent damage to the workpiece or fastener.
Additionally, some drills may have a separate drill/driver switch that allows you to choose between using the drill in drilling or driving mode. In drilling mode, the drill rotates freely without torque control, while in driving mode, the clutch settings come into play to control the amount of torque applied.
By adjusting the clutch settings on your drill, you can ensure that you have the right amount of torque for the task at hand, providing more control and preventing damage.
Drilling Modes: Drill, Hammer, and Driver Functions
When using a drill, it is important to understand the different settings or modes that are available. These settings determine how the drill functions and are designed to optimize performance based on the task at hand. The three main drilling modes are drill, hammer, and driver functions.
Drill Mode
In drill mode, the drill rotates in a clockwise direction, allowing you to drill holes into various materials such as wood, plastic, and metal. This is the most common mode used for general drilling tasks. The drill bit cuts into the material, creating a hole.
Hammer Mode
Hammer mode is used primarily for drilling into masonry materials such as concrete, brick, and stone. In this mode, the drill not only rotates but also moves forward and backward in a hammering motion. The combination of rotation and percussion helps to break through tough materials. Hammer mode is identified by a symbol that looks like a hammer on the drill.
Driver Functions
Driver functions are used for driving screws and other fasteners into materials. To use this mode, you need to attach a screwdriver bit to the chuck of the drill. The drill will then rotate in a clockwise direction, so you can drive screws into the material without the need for manual force. This mode is especially useful for projects that require a lot of screws, as it saves time and effort.
It is important to note that not all drills have all three modes. Some drills may only have two modes, while others may have more specialized modes for specific tasks.
Additional Features: LED Lights, Dust Collectors, and More
LED Lights
Many modern drills come equipped with LED lights, which are incredibly useful in low-light situations. These small lights are typically located near the drill bit or chuck and provide a focused beam of light to illuminate the work area. LED lights are especially handy when working in dark corners, under cabinets, or in other cramped spaces where visibility is limited. They allow you to see exactly where you are drilling, ensuring precision and accuracy.

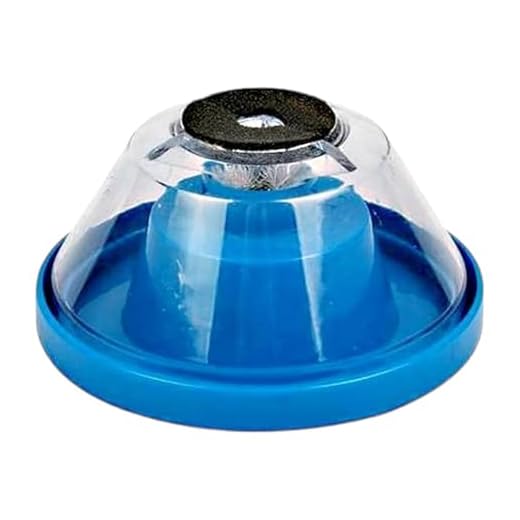

Dust Collectors
Drilling can often produce a significant amount of dust and debris, creating a messy work environment. To help combat this, some drills come with dust collectors or dust extraction systems. These features help to capture and contain the dust created during drilling, keeping your work area cleaner and reducing the amount of dust that enters the air. Dust collectors can either be built-in or removable attachments that can be easily connected to a vacuum or dust collection system for efficient debris removal.
Variable Speed Control
One important feature to look for in a drill is variable speed control. This allows you to adjust the speed of the drill to match the application or material you are working with. Different materials, such as wood, metal, or plastic, may require different drilling speeds for optimal results. With variable speed control, you have the flexibility to choose the appropriate speed for each task, ensuring more accurate drilling and preventing damage to the material.
Reverse Function
The reverse function is a useful feature that allows the drill bit to rotate in the opposite direction. This is particularly handy when removing screws or other fasteners. By simply switching the direction of rotation, you can easily back out screws without the need for a manual screwdriver. Additionally, the reverse function can help to free a stuck drill bit by rotating it in the opposite direction, allowing it to be removed with ease.
Depth Control
Sometimes, you may need to drill holes to a specific depth. To achieve this, drills often come with depth control features. This allows you to set the depth at which the drill bit will stop drilling, ensuring consistent and accurate hole depths. Depending on the model, depth control can be adjusted using a simple depth stop or a more complex depth gauge system. This feature is particularly useful when drilling holes for screws or dowels, as it prevents you from drilling too deep and damaging the material.
Additional Accessories
Many drills come with additional accessories to enhance their functionality. These can include extra drill bits, screwdriver bits, and other attachments that allow you to perform a wide range of tasks with a single tool. Some drills even come with carrying cases or storage solutions to keep your drill and its accessories organized and protected. When choosing a drill, consider the additional accessories it comes with and whether they align with your specific needs and projects.
FAQ:
What are the different settings on a drill?
The different settings on a drill typically include options such as a drill mode, a screwdriver mode, and a hammer mode. Each setting is used for specific tasks.
How do I use the drill mode on a drill?
The drill mode on a drill is used for drilling holes in different materials. To use it, simply select the drill mode on the drill, adjust the speed and torque settings as needed, and place the drill bit on the surface you want to drill into. Apply steady pressure and let the drill do the work.
What is the screwdriver mode used for on a drill?
The screwdriver mode on a drill is used for driving screws into different materials. It typically allows for adjustable torque settings to prevent overdriving or stripping the screws. To use it, select the screwdriver mode on the drill, choose the appropriate torque setting, align the drill bit with the screw head, and slowly apply pressure while turning the drill clockwise.
When should I use the hammer mode on a drill?
The hammer mode on a drill is used for drilling into hard materials such as concrete or masonry. It combines the spinning action of the drill with a powerful hammering motion to break through tough surfaces. Use the hammer mode when you need to drill holes in these types of materials.
How do I switch between different settings on a drill?
To switch between different settings on a drill, locate the setting switch usually located near the chuck of the drill. Turn the switch to select the desired setting, such as drill mode, screwdriver mode, or hammer mode. Some drills may have additional settings or adjustable features that can be controlled using switches or dials on the tool.
What safety precautions should I take when using different settings on a drill?
When using different settings on a drill, it’s important to wear safety goggles to protect your eyes from flying debris. Additionally, always ensure the drill is securely held with both hands and maintain a firm grip on the tool. Be mindful of the drill’s power and adjust the speed and torque settings appropriately for the task at hand. Finally, make sure to follow any specific safety instructions provided in the drill’s user manual.
